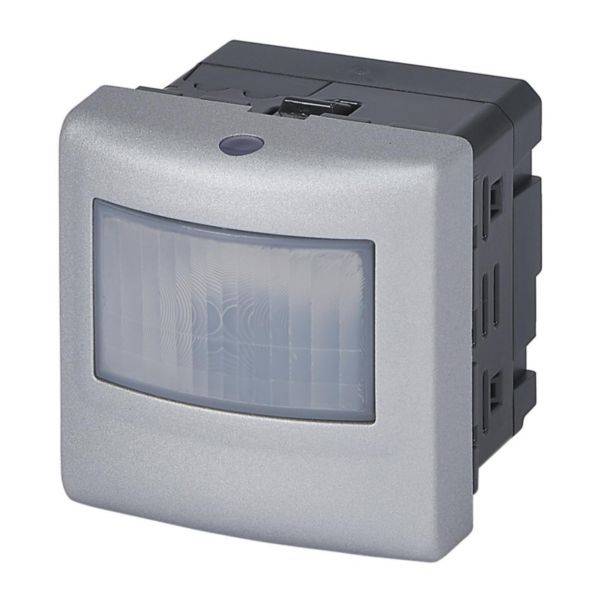

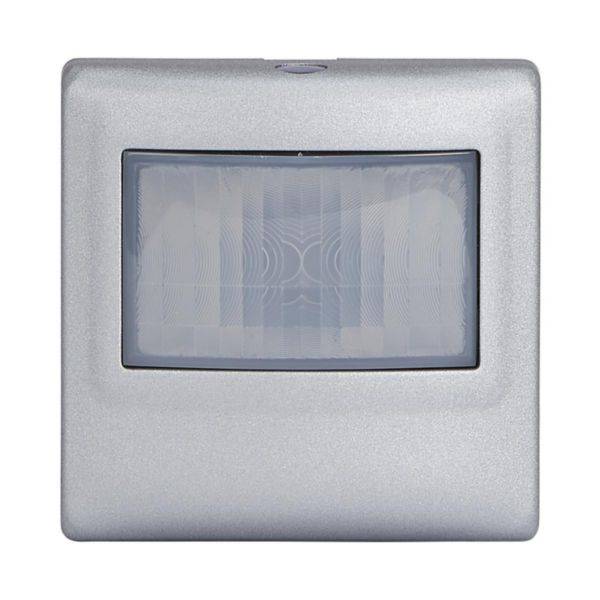

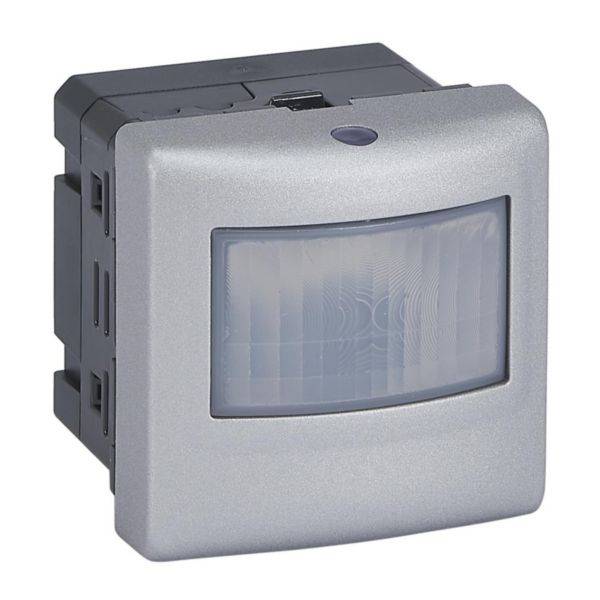

Legrand Insert Motion detector Mosaic Aluminium 079247A 1 pc(s)

MOSAIC 2-conductor motion detector without neutral conductor for automatic switching of consumers upon detection of persons within the detection range. Equipped with electronic overvoltage and short-circuit protection. Connection by means of screw terminals. Colour design: Aluminium.Capturing range: 170°; suitable for extension; detection range: Gradually 2 – 8 m; switch-off delay: 5 sec. – 30 min.; brightness threshold: 5 – 1275 Lux; standby consumption: 0.01 WSuitable for the following load start: LEDs: 2 to 100W; compact fluorescent lamps: 150 – 100 W; incandescent and HV halogen lamps: 2 – 2 W; LEDs, compact fluorescent, halogen and fluorescent lamps with ferromagnetic or electronic ballast: 2 - 150 VaVia the extension input a button (NC contact) max. 10 detectors can be controlled. With sensors connected in parallel (max. 3) the minimum load increases (see data sheet). Depending on the carrier ring used, the insert can be mounted using screws or expanding claws.
