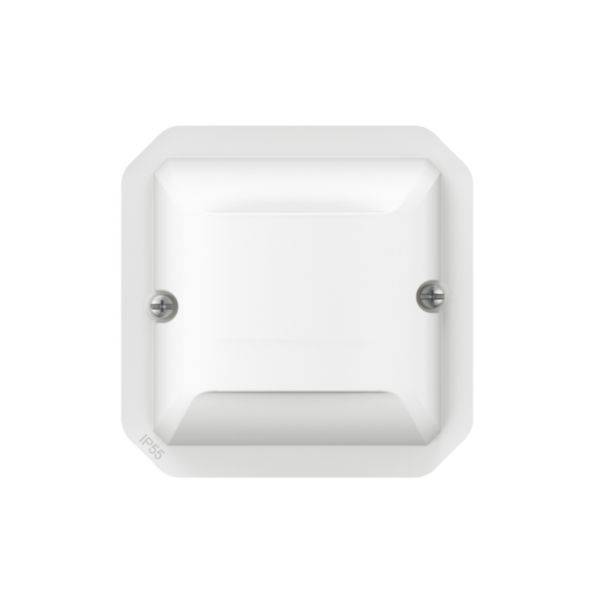

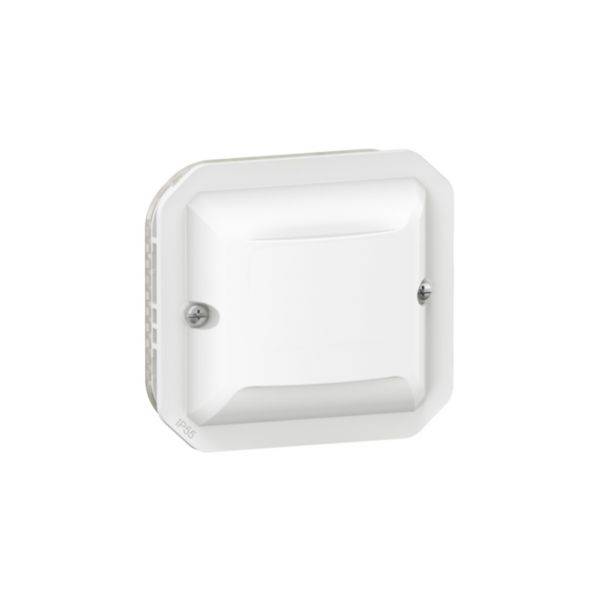

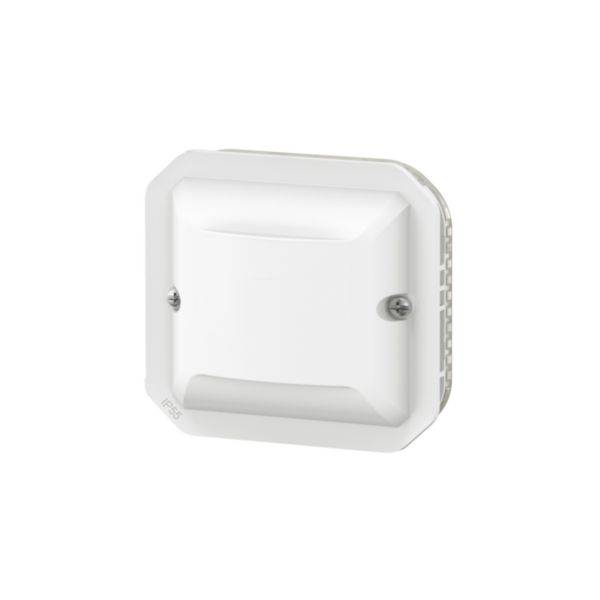

Legrand Insert Motion detector Plexo 069522LA 1 pc(s)

Humidity room switch range PLEXO NEW 3-conductor motion detectors with neutral conductor for automatic switching of consumers when people within the detection range are detected. Equipped with electronic overvoltage and short-circuit protection. Connection by means of screw terminals. The inserts can be used with the corresponding housings and frames for the surface or flush mounting. Colour version: Grey/white. Protection type: IP55.Capturing range: 170°; suitable for extension; Detection range: Gradually 2 – 8 m; Switch-off delay: 5 sec. – 30 min.; Brightness threshold: 5 – 1275 Lux; Standby consumption: 0.01 WSuitable for the following loads: LEDs: 500W; Compact fluorescent lamps: 500 W; incandescent and HV-halogen lamps: 2000 W; LEDs, compact fluorescent lamps with ferromagnetic ballast or electronic ballast: 1000 VAVia the extension input, up to 10 detectors can be controlled by a button. Parallel connection of several motion detectors is possible (max. 10). With Master/slave installation, it is possible to control over a Master 10 slaves.

This text is machine translated.
