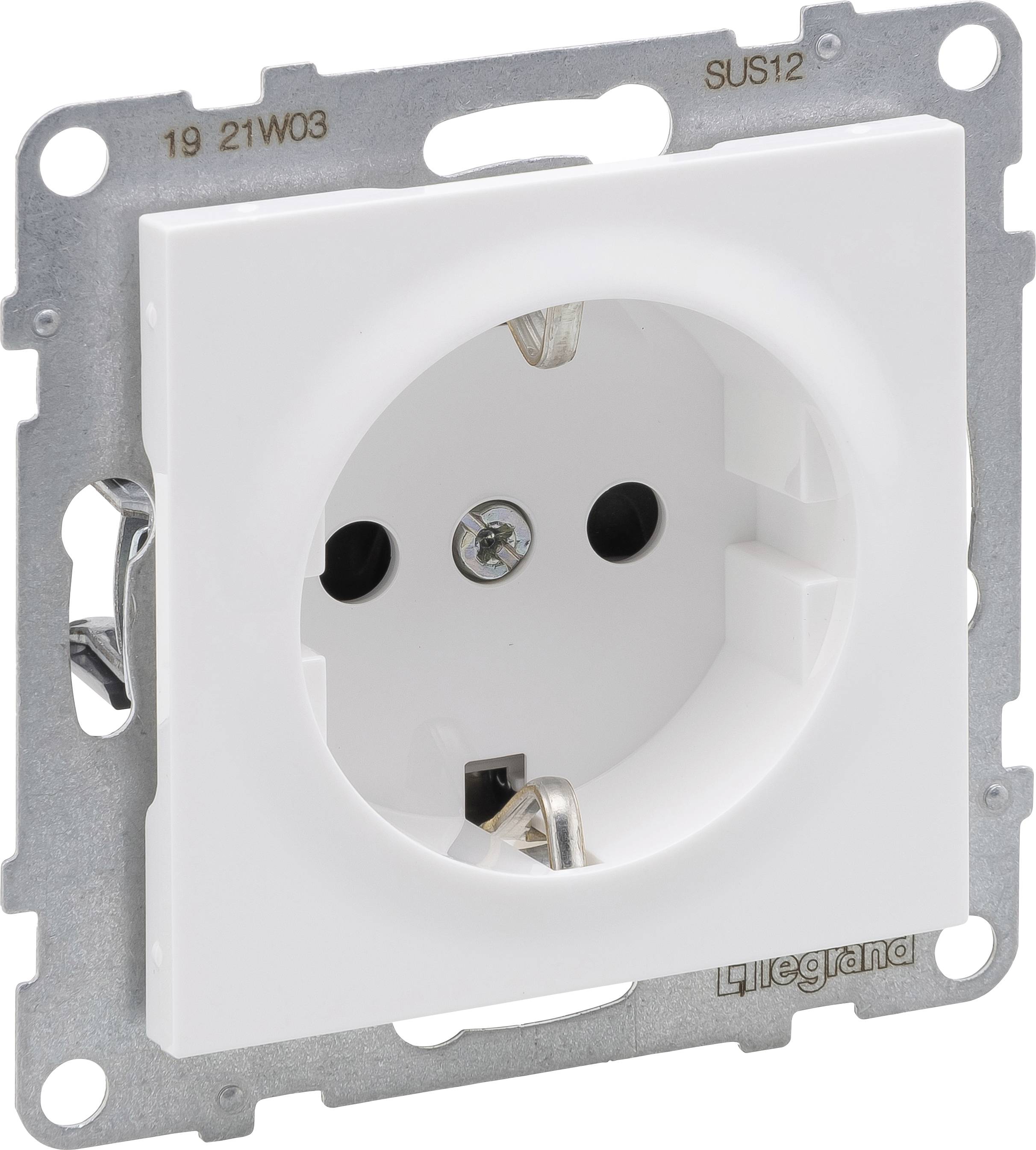

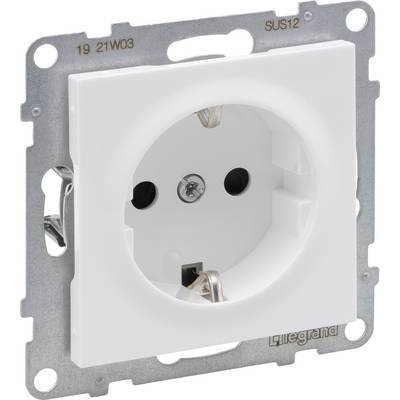

Legrand Insert PG socket, Dry-lining box Seano Ultra white 765120 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
5
6% = € 0.19
€ 2.74
10
9% = € 0.27
€ 2.66
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
14-day return policy included
Highlights & Details
Legrand, SEANO earthing contact socket-outlet with increased contact protection
- Junction box
- Plug terminals
- 250 V/16 A
- Colour: Ultra white
Technical specifications
- Type
Legrand, SEANO earthing contact socket-outlet with increased contact protection
- Switch type function
PG socket
Dry-lining box
- Product type
PG socket
- Switch type component
Insert
- Type series
Seano
- Factory colour
Ultra white
- Nominal voltage
250 V
- Nominal current
16 A
IP20
IK04
- Temperature range
- 5 - 35 °C
- Dim
(W x H x D) 73.0000 x 73.0000 x 40.0000 mm
- Content
1 pc(s)
- Material
PVC
- Depth
40.0000 mm
- Height
73.0000 mm
- Width
73.0000 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3322688 Legrand Insert PG socket, Dry-lining box Seano Ultra white 765120 1 pc(s)
Description
SEANO protective contact socket 16 A, 250 V with plug-in terminals and with increased contact protection.
The SEANO inserts are suitable for expanding claw and screw fixing and are supplied with transparent dust cover.
Can be used for the connection of rigid and flexible conductors by means of pluggable terminals (SL).
For complete with cover frame by SEANO, SEANO+ and SEANO Natura.
Supplied in professional packaging (cardboard box).
Colour design: Ultra white
This text is machine translated.
The SEANO inserts are suitable for expanding claw and screw fixing and are supplied with transparent dust cover.
Can be used for the connection of rigid and flexible conductors by means of pluggable terminals (SL).
For complete with cover frame by SEANO, SEANO+ and SEANO Natura.
Supplied in professional packaging (cardboard box).
Colour design: Ultra white
This text is machine translated.
Features
- SCHUKO SOCKET OUTLET: The earthing contact socket outlet has increased protection against accidental contact and provides maximum safety. Equipped with a connection socket and plug-in terminals, it offers a reliable power supply and easy installation.
- The clever SCREW SYSTEM allows you to securely attach the socket head with your cordless screwdriver. The device prevents hair cracks in the plastic or a break caused by a rotated center screw too tight.
- CONVENIENT FUNCTIONAL TEST: The SEANO series sockets allow you to test the product for its functionality easily, quickly and without removing it.
- The 4-point spring system presses the frame against the wall, making the installation particularly easy. Stylish cover for negative wall effects and compensate for irregularities in the positioning of the installation.
- SIZE-optimized USE: The cube in use has been greatly reduced, giving you more wiring space. This gives you also more scope for balancing inaccurate hollow wall boxes.
- DOUBLE-TOOTH spread claw: The spreader claw is fully covered in neutral position, WAS prevents damage to wire insulation, or to your hands. In addition, an improved grip and an increased tensile strength of the use is ensured.
- POSITIONING SYSTEM: Thanks to the clever positioning system of the SEANO inserts, these can be placed together exactly for multiple installations and offer enough flexibility to compensate for imprecise box distances in case of multiple combinations.
- MALERACOVER: All inserts are provided with a painting cover attached ex works to protect the product from dust, paint and damage - even after installation. This saves you the hassle of masking the inserts before painting.
- SUSTAINABILITY: The entire SEANO product portfolio uses only recycled plastics. All packaging is made of paper or cardboard, replacing plastic packaging and non-recyclable duroplasts.
- TECHNICAL DETAILS: Material quality: Thermoplastic, halogen-free, circuit diagram, circuit symbol and stripping length visible at the insert, IP20, IK04, 250 Volt, connection type: Plug-in terminal, 72.9 mm x 72.9 mm x 39.9 mm, plastic insulated insert, 765120
Scope of delivery
- SEANO socket
