Buy Legrand Insert Plexo Grey 069504L 1 pc(s)

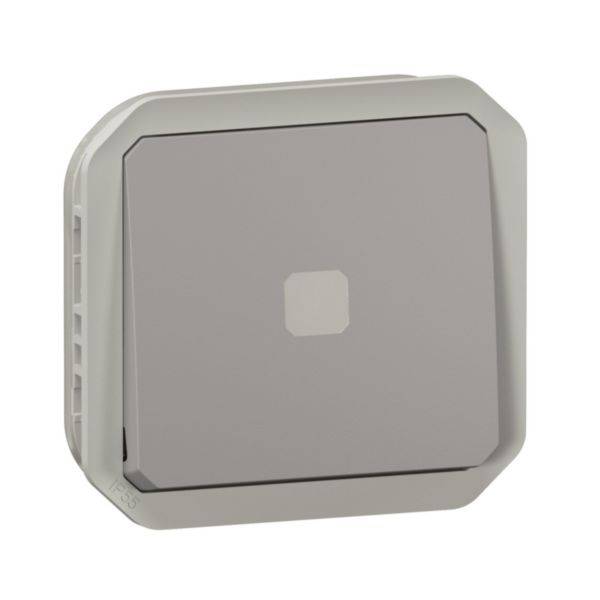

A rectangular, grey wall switch in close-up. The switch has rounded corners and a central square. It is suitable for interior spaces.

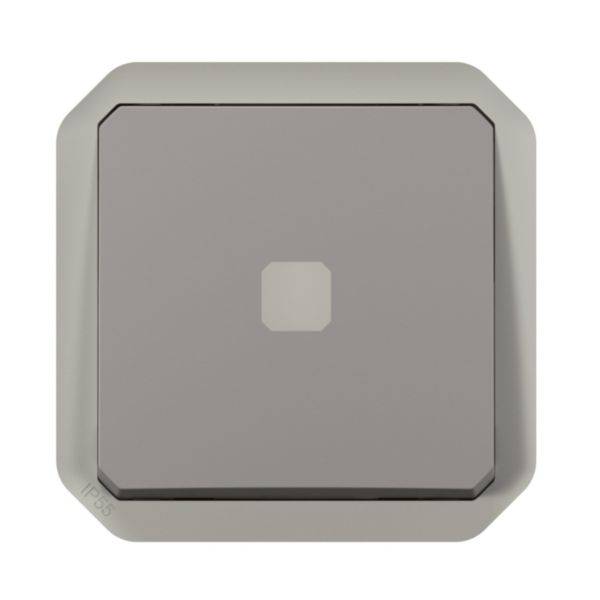

A square, grey wall switch, designed in a minimalist style, with softly rounded corners and a small, raised centre.

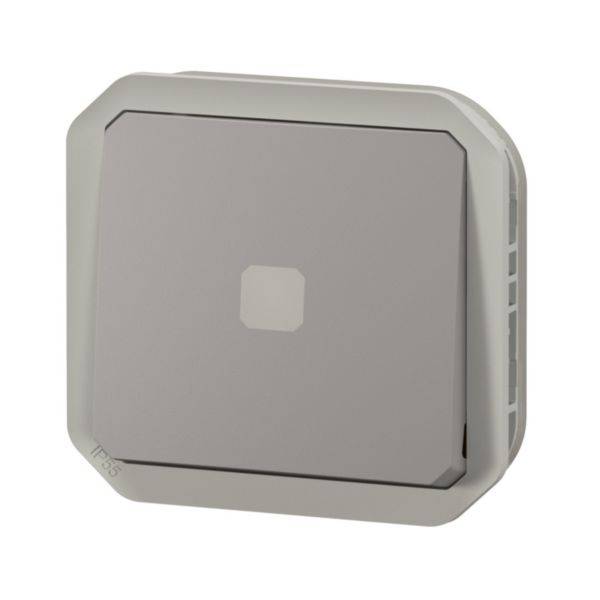

A grey, square ventilation cover with a central, square pattern. It has rounded corners and side ventilation slits.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Type: Legrand 069504L Plexo new use time switch off-delay

Product type: Timer switch

Switch type component: Insert

Type series: Plexo

Factory colour: Grey

Switching capacity (light bulbs): 1000 W

Switching capacity (light tubes): 400 W

Switching capacity (energy saving bulbs): 400 W

Switching capacity: 250 W

Heating capacity rating: 1840 W

Content: 1 pc(s)

Switching capacity (LED): 400 W

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3359850 Legrand Insert Plexo Grey 069504L 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3359850 Legrand Insert Plexo Grey 069504L 1 pc(s)

Description

Plextor New application timer switch off delay, illuminated, IP 55, IK 07, in color: Grey. 2-conductor connection After switching off, the load runs for the set time (25 sec. to 15 min.). Suitable for the following loads: Incandescent and 230 V HV halogen lamps: 1000 W; low-voltage halogen lamps with electronic or conventional transformers: 400 W; fluorescent lamps with ballast: 400 W; LED or compact fluorescent lamps: 400 W; motors / fans: 250 W; heating 1840 W (resistive resistance); contains an integrated LED to illuminate the switch. Inserts must be installed in a carrier ring (flush-mounted frame ) or in a surface-mounted housing.

This text is machine translated.
