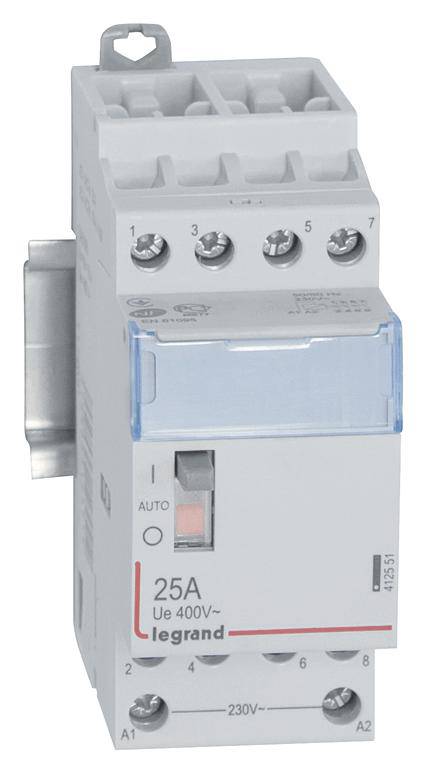

Legrand Legrand 412551 Remote switch 4 makers 230 V 25 A + auxiliary contact 1 pc(s)
EAN:
Part number:
Item no:
Product type
Remote switch
No. of pins
4-pin
Nominal voltage
230 V
Current load
25 A
Type
Legrand 412551
Datasheet (PDF)
Technical specifications
- Max. Bulb load 3000 W
- Number of division units: 2
- Max. Fluorescent lamp load 2100 VA
- Rated actuation voltage 195 V-253 V.
- Rated operating current 25 A.
- Product type
Remote switch
- Type
Legrand 412551
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Nominal voltage
230 V
- Control voltage (min.)
195 V AC
- Control voltage (max.)
253 V AC
- Control voltage range
195 - 253 V AC
- Switching voltage (max.)
400 V AC
- Max. switching capacity
3000 W
- Permanent current (max.)
25 A
- Current load
25 A
- Features
+ auxiliary contact
- Mounting type
DIN rail
IP2X
- Width
95.0000 mm
- Height
36.0000 mm
- Depth
44 mm
- Dim
(W x H x D) 95.0000 x 36.0000 x 44 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2153864 Legrand Legrand 412551 Remote switch 4 makers 230 V 25 A + auxiliary contact 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2153864 Legrand Legrand 412551 Remote switch 4 makers 230 V 25 A + auxiliary contact 1 pc(s)
Description
Legrand Installation contactor CX3, coil voltage 230 V AC, 4-pole, version: 4 NO contacts, rated operating current IE 25 A/ 400 V AC, with manual switch. According to EN 61095, usage category AC-1/AC-7a and AC-3/AC-7b, installation protection for switching of loads such as lamp groups, motors and heaters, with labeling window, with switching status display, fixing on top hat profile rail EN 60715 by snap-lock quick mounting, attachment of auxiliary switches possible.
