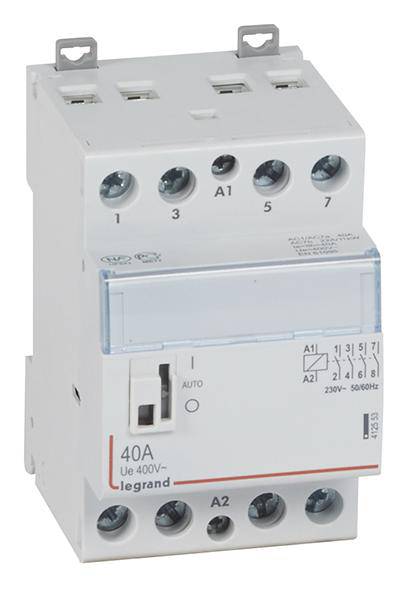

Legrand Legrand 412553 Remote switch 4 makers 230 V 40 A + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Max. Incandescent lamp load 5000 W.
- Number of division units: 3
- Max. Fluorescent lamp load 3100 VA
- Rated actuation voltage 195 V-253 V.
- Rated operating current 40 A.
- Depth
44 mm
- Height
58.0000 mm
- Width
89.0000 mm
IP2X
- Auxiliary contact type
4 makers
- Contact type
4 makers
- Packaging type
Piece
- Mounting type
DIN rail
- No. of pins
4-pin
- Features
+ auxiliary contact
- Nominal voltage
230 V
- Permanent current (max.)
40 A
- Control voltage (max.)
253 V AC
- Control voltage (min.)
195 V AC
- Current load
40 A
- Max. switching capacity
5000 W
- Weight
3.46
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2152451 Legrand Legrand 412553 Remote switch 4 makers 230 V 40 A + auxiliary contact Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2152451 Legrand Legrand 412553 Remote switch 4 makers 230 V 40 A + auxiliary contact Piece 1 pc(s)
Description
Legrand Installation contactor CX3, coil voltage 230 V AC, 4-pole, design: 4 NO contacts, rated operating current IE 40 A/ 400 V AC, with manual switch. According to EN 61095, usage category AC-1/AC-7a and AC-3/AC-7b, installation protection for switching of loads such as lamp groups, motors and heaters, with labeling window, with switching status display, fixing on top hat profile rail EN 60715 by snap-lock quick mounting, attachment of auxiliary switches possible.
