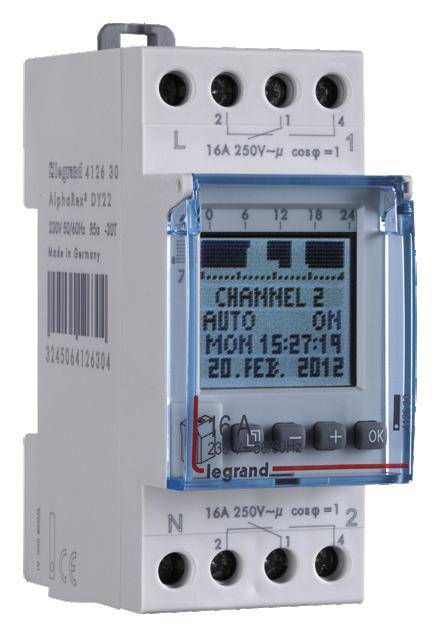

Legrand Legrand 412630 DIN rail mount timer digital 250 V

AlphaRex DY22, digital annual timer, series installation, year and week timer with additional Astro-function for all channels. With text-guided programming concept. Programming in seconds. Easy program creation via PC using the Legrand alphasoft and data keys. Switching times are shown on the display as a weekly overview. 84 switching programs per channel: 28 weekly programs, 28 annual programs, 28 exceptional programs (priority program). Shortest switching time 1 sec., switching step 1 sec. Power reserve 5 years for date and time. EEPROM memory for backing up the switching programs. Additional comfort functions: Astro function (sunrise/sunset) can be combined with timer function, offset for sunrise and sunset time adjustable via time offset +/- 120 min. or angle offset +/- 12°00´ . Holiday program, random program, cycle function, channel change function, operating hours counter, PIN code input lock, 1h test, background lighting, automatic summer/winter time changeover, mains synchronous operation adjustable, manual switching, with zero-crossing switching. Switching output: 2 changeover contacts 250V/ 50 Hz, 16 A~ cos phi = 1

This text is machine translated.
