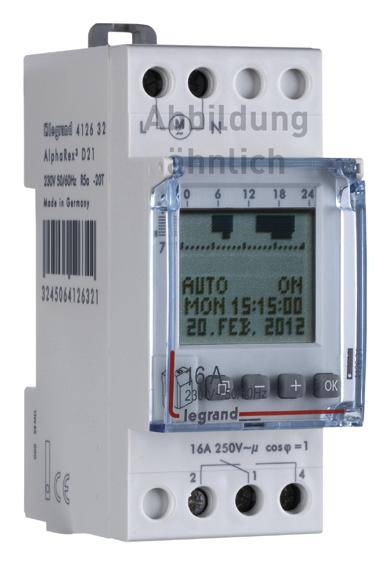

Legrand Legrand 412632 DIN rail mount timer digital 120 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time adjustment: Yes
- Width in division units: 2
- Nominal switching current at 250 V AC: 16 A.
- Supply voltage frequency 50 Hz
- Voltage type of supply voltage: AC
- Contact type: Changer
- Protection class: IP20
- Mounting type: DIN rail
- Product type
DIN rail mount timer
- Operating voltage
120 V
- Channels
1x CHANGEOVER
- Type
digital
- Type
Legrand 412632
- Manufacturer part #
412632
- Memory slots
56
- Min. power reserve
5 years
- Height
83 mm
- Length
60 mm
- Features
Daylight savings control (automatic)
- Switching cycle
7 day mode
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2158276 Legrand Legrand 412632 DIN rail mount timer digital 120 V
User & Safety Instructions
User & Safety Instructions 2158276 Legrand Legrand 412632 DIN rail mount timer digital 120 V
Description
AlphaRex³ D21, digital weekly timer, series installation, with text-guided programming concept. Programming in seconds. Easy program creation via PC using the Legrand alphasoft and data keys. Switching times are shown on the display as a weekly overview. Programming by selecting day blocks or selecting preset blocks Mon-so, Mon-Fri or Sat-Sun. 56 programs. Shortest switching time 1 sec., switching step 1 sec. Power reserve 5 years for date and time. EEPROM memory for backing up the switching programs. Additional comfort functions: Holiday program, random program, cycle function, operating hours counter, PIN code input lock, 1h test, background lighting, automatic summer/winter time changeover, mains synchronous operation adjustable, manual switching, with zero-crossing switching. Switching output: 1 changer 250 V/ 50 Hz, 16 A~ cos phi = 1
