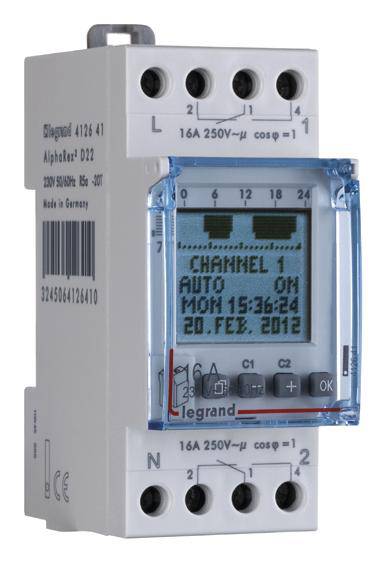

Legrand Legrand 412657 DIN rail mount timer digital 230 V

AlphaRex D22 astro, digital Astro-timer, series installation, for switching on and off lights and other electrical consumers related to the twilight. Astro function can be combined with timer function. Offset for sunrise and sunset time adjustable via time offset +/- 120 min. or angle offset +/- 12°00´ . Control directly from the distribution, no separate light catcher necessary. With text-guided programming concept. Programming in seconds. Easy program creation via PC using the Legrand alphasoft and data keys. Switching times are shown on the display as a weekly overview. Programming by selecting day blocks or selecting preset blocks Mon-so, Mon-Fri or Sat-Sun. 56 programs (28 per channel). Shortest switching time 1 sec., switching step 1 sec. Power reserve 5 years for date and time. EEPROM memory for backing up the switching programs. Additional comfort functions: Holiday program, random program, cycle function, channel change function, operating hours counter, PIN code input lock, 1h-test, background lighting, automatic summer/winter time changeover, mains synchronous operation adjustable, manual switching, with zero-crossing switching. Switching output: 2 changeover contacts 250V/ 50 Hz, 16 A~ cos phi = 1
