Legrand Legrand 412669 DIN rail mount timer digital
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Width in division units: 1
- Contact type: Changer
- Product type
DIN rail mount timer
- Channels
1x CHANGEOVER
- Type
digital
- Type
Legrand 412669
- Manufacturer part #
412669
- Memory slots
28
- Astro function
Yes
- Min. power reserve
5 years
- Impulse
Yes
- Height
80 mm
- Features
Daylight savings control (automatic)
- Switching cycle
7 day mode
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2158642 Legrand Legrand 412669 DIN rail mount timer digital
User & Safety Instructions
User & Safety Instructions 2158642 Legrand Legrand 412669 DIN rail mount timer digital
Description

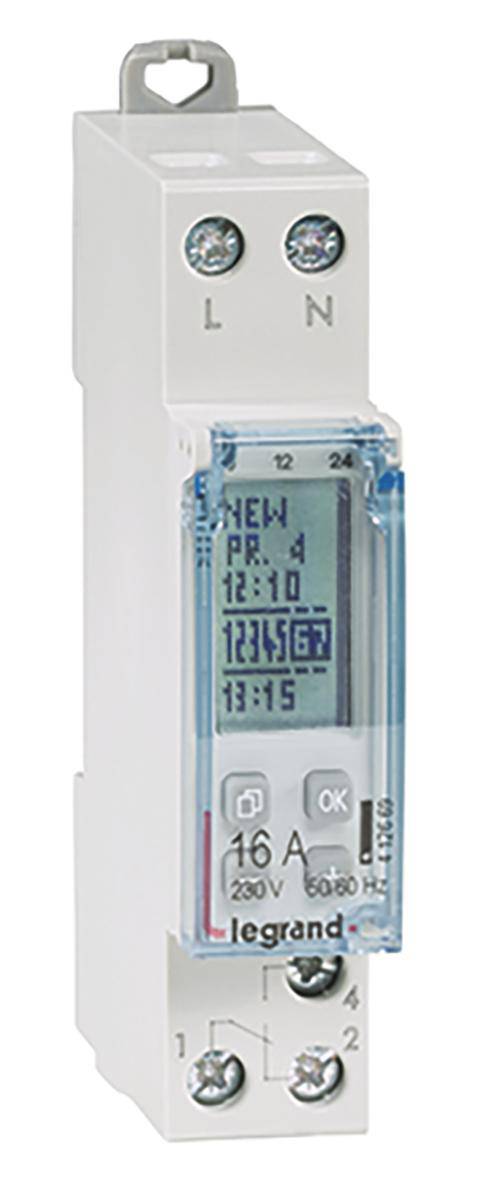

Legrand AlphaRex³ D11, single-module digital weekly timer, 1 channel, 28 switching programs, operating voltage 230 V 50/60 Hz, program creation directly on the device or with PC, alphasoft, PCAdapter (412873) and data key (412872). Duration ON/OFF, holiday program, random program, 1 hour test, pin code lock, operating hours counter, background lighting, control input, automatic summer/winter time changeover, 5 years power reserve, accuracy +/ 0.1 sec/day, shortest switching time: 1 min, zero-crossing switching. Switching output: 1 changeover contact.
