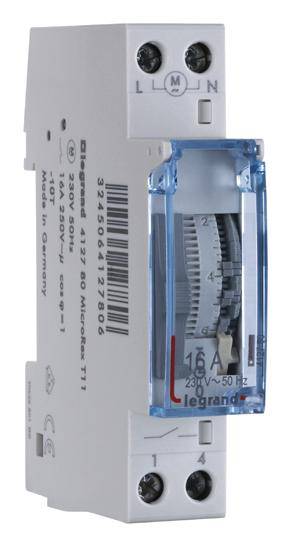

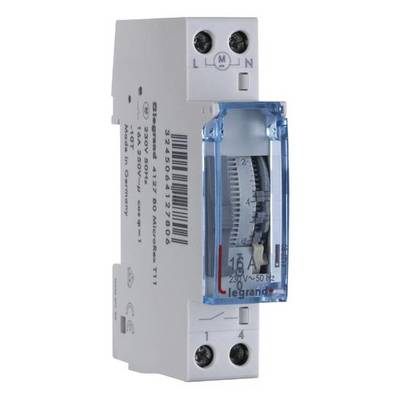

Legrand Legrand 412780 DIN rail mount timer analogue 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time adjustment: No.
- Width in division units: 1
- Nominal switching current at 250 V AC: 16 A.
- Supply voltage frequency 50 Hz
- Voltage type of supply voltage: AC
- Contact type: Closer
- Protection class: IP20
- Mounting type: DIN rail
- Product type
DIN rail mount timer
- Operating voltage
230 V
- Channels
1x ON
- Type
analogue
- Type
Legrand 412780
- Manufacturer part #
412780
- Factory colour
Multicolour
- Dim
(L x W x H) 60 x 89.0000 x 83 mm
- Astro function
No
- Width
89.0000 mm
- Height
83 mm
- Length
60 mm
- Switching cycle
24h mode
- Depth
21.0000 mm
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2158286 Legrand Legrand 412780 DIN rail mount timer analogue 230 V
User & Safety Instructions
User & Safety Instructions 2158286 Legrand Legrand 412780 DIN rail mount timer analogue 230 V
Description
MicroRex T11, analogueue daytime timer switch with synchronous motor (line-synchronous accuracy) for distributor installation, with manual switch: ON-off, WITH captive switching segments, sealable cover, shortest switching time: 15 min. Switching output: 1 NO 250V/ 50 Hz, 16 A~ cos phi = 1
