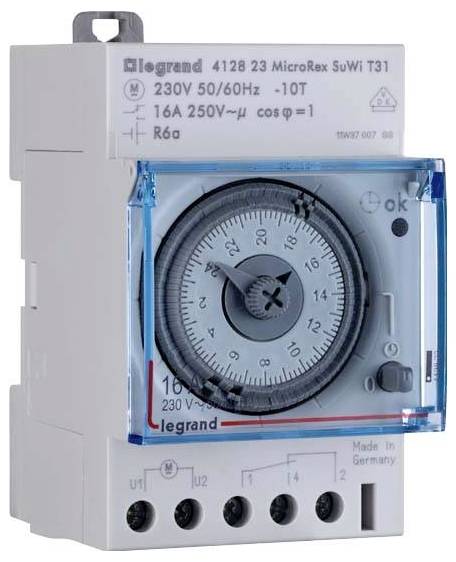

Legrand Legrand 412809 DIN rail mount timer analogue 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time adjustment: No.
- Width in division units: 3
- Nominal switching current at 250 V AC: 16 A.
- Voltage type of supply voltage: AC
- Contact type: Changer
- Protection class: IP20
- Mounting type: DIN rail
- Product type
DIN rail mount timer
- Operating voltage
230 V
- Channels
1x CHANGEOVER
- Type
analogue
- Type
Legrand 412809
- Manufacturer part #
412809
- Astro function
No
- Height
83 mm
- Length
60 mm
- Switching cycle
24h mode
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2153998 Legrand Legrand 412809 DIN rail mount timer analogue 230 V
User & Safety Instructions
User & Safety Instructions 2153998 Legrand Legrand 412809 DIN rail mount timer analogue 230 V
Description
MicroRex T31F, analogueue daily timer with synchronous motor (line-synchronous accuracy) for distributor installation, without manual switch, with captive switching segments, pointer can be rotated forwards and backwards, thus very easy setting of e.g. summer and winter time, cover sealable, shortest switching time: 30 min. Switching output: 1 changer 250 V/ 50 Hz, 16 A~ cos phi = 1
This text is machine translated.
