Legrand Legrand 412820 DIN rail mount timer analogue 9 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Automatic summer/winter time adjustment: No.
- Width in division units: 3
- Nominal switching current at 250 V AC: 16 A.
- Voltage type of supply voltage: AC/DC
- Contact type: Changer
- Protection class: IP20
- Mounting type: DIN rail
- Product type
DIN rail mount timer
- Operating voltage
9 V
- Channels
1x CHANGEOVER
- Type
analogue
- Type
Legrand 412820
- Manufacturer part #
412820
- Min. power reserve
100 h
- Height
83 mm
- Length
60 mm
- Features
Daylight savings control
- Switching cycle
24h mode
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2158295 Legrand Legrand 412820 DIN rail mount timer analogue 9 V
User & Safety Instructions
User & Safety Instructions 2158295 Legrand Legrand 412820 DIN rail mount timer analogue 9 V
Description

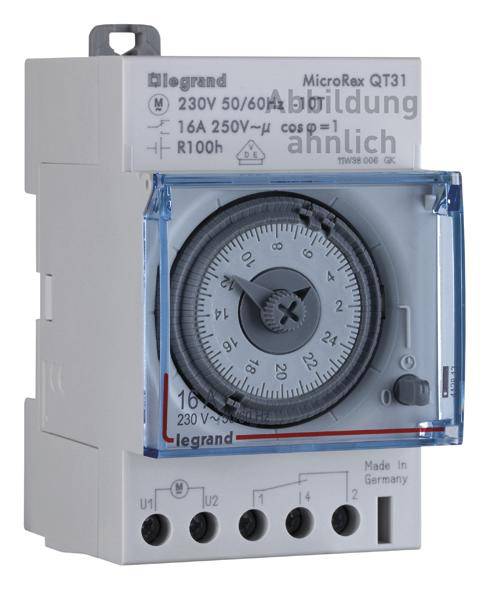

MicroRex QT31, analogueue daily timer with quartz motor (accuracy +/- 2.5 sec/day, power reserve 100 h), for the distributor installation, with manual switch: ON-off, with captive switching segments, pointer can be rotated forwards and backwards, thus very easy setting of e.g. summer and winter time, cover sealable, shortest switching time: 30 min. Switching output: 1 changer 250 V/ 50 Hz, 16 A~ cos phi = 1
