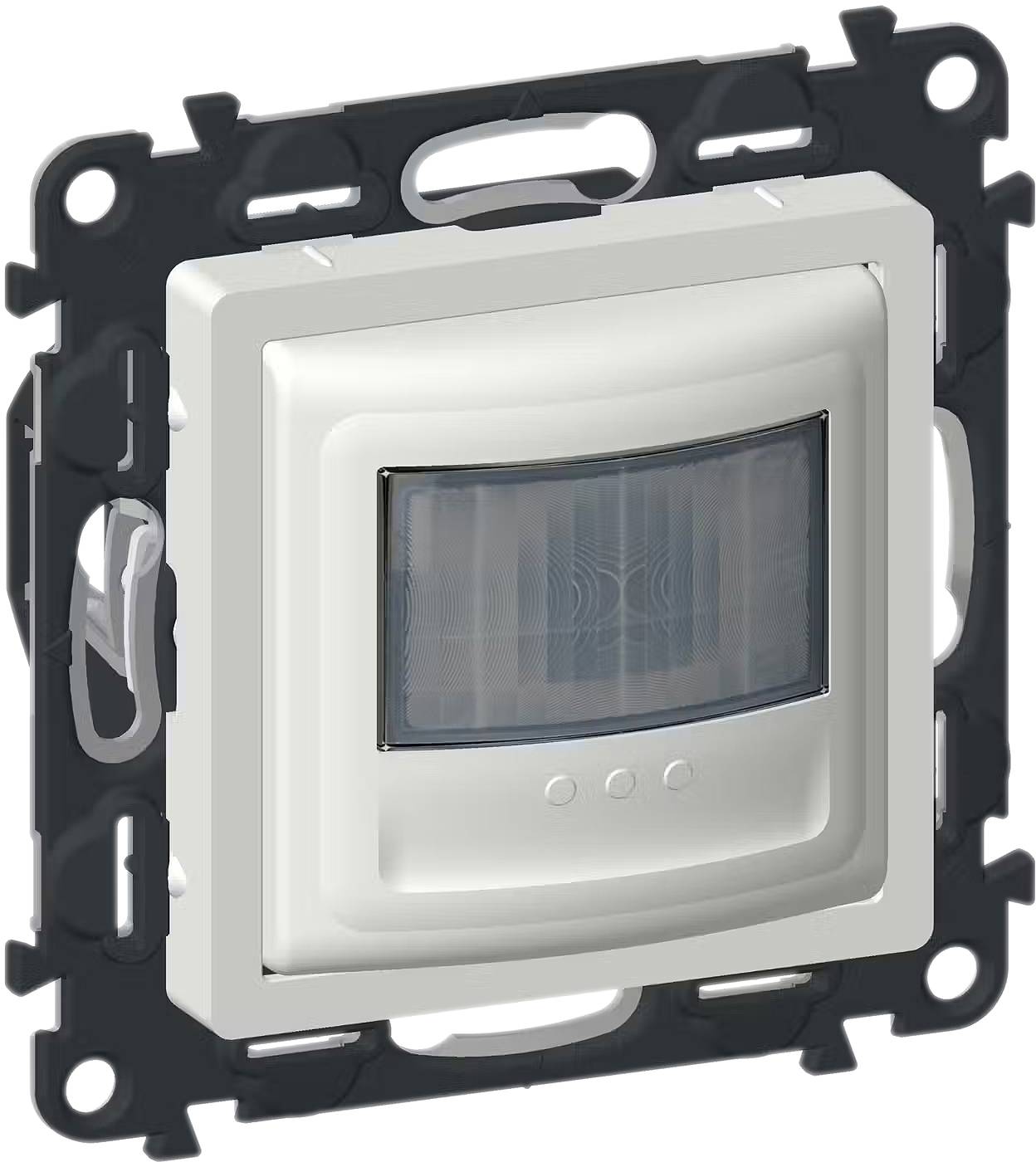

Legrand Motion detector Valena Life/Allure 752172A 1 pc(s)

VALENA LIFE 2-conductor motion detector without neutral conductor with manual switch for automatic switching of consumers when people within the detection range are detected. Equipped with electronic overvoltage and short-circuit protection. Connection by means of screw terminals. Color: Ultrawhite.The manual switch can be used to perform the following functions manually: - Switch on permanently for 4 hours; - Switch off permanently until revoked; - Return to automatic mode. Capturing range: 170°; Extension-suitable; Detection range: Step-by-step 30 – 8 m; Switch-off delay: 5 sec. – 2 min.; Brightness threshold: 2 – 1275 Lux; Standby consumption: 0.01 WSuitable for the following loads: LEDs: 5 to 100W; Compact fluorescent lamps: 150 – 100 W; Incandescent and HV halogen lamps: 2 – 2 W; LEDs, compact fluorescent, halogen and fluorescent lamps with ferromagnetic or electronic ballast: 2 - 150 VaVia the extension input a button (NC contact) max. 10 detectors can be controlled. With sensors connected in parallel (max. 3) the minimum load increases (see data sheet).Screw and spreader claw mounting.

This text is machine translated.
