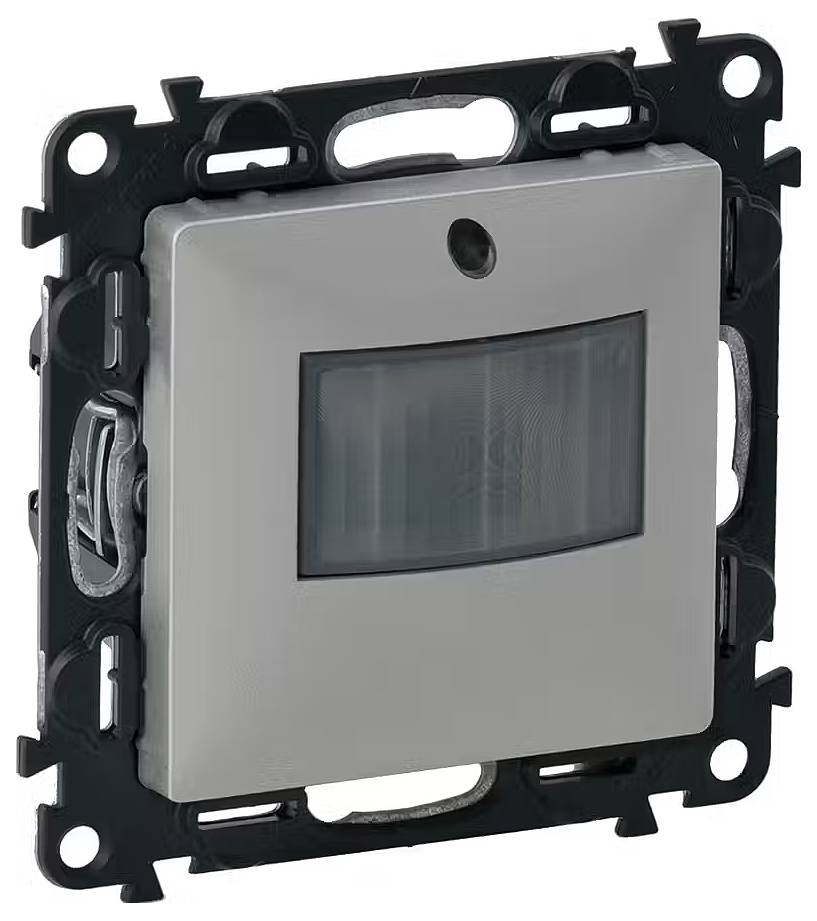

Legrand Motion detector Valena Life/Allure Aluminium 752373A 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type
Legrand 752373A VALLENA LIFE 3-L motion detector 170° 500W LED aluminum
- Switch type function
Motion detector
- Product type
Motion detector
- Type series
Valena Life/Allure
- Factory colour
Aluminium
- Switching capacity (light bulbs)
2000 W
- Switching capacity (light tubes)
1000 VA
- Switching capacity (energy saving bulbs)
500 W
- Content
1 pc(s)
8 m
- Switching capacity (LED)
500 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3360157 Legrand Motion detector Valena Life/Allure Aluminium 752373A 1 pc(s)
Description
VALENA LIFE 3-conductor motion detector with neutral conductor for automatic switching of consumers when people within the detection range are detected. Equipped with electronic overvoltage and short-circuit protection. Connection by means of screw terminals. Colour design: Aluminium.Capturing range: 170°; suitable for extension; detection range: Gradually 2 – 8 m; switch-off delay: 5 sec. – 30 min.; brightness threshold: 5 – 1275 Lux; standby consumption: 0.01 WSuitable for the following load starts: LEDs: 500W; compact fluorescent lamps: 500 W; incandescent and HV halogen lamps: 2000 W; LEDs, compact fluorescent lamps with ferromagnetic ballast or electronic: 1000 VAVia the extension input, up to 10 detectors can be controlled by a button. Parallel connection of several motion detectors is possible (max. 10). With Master/slave installation, it is possible to control over a Master 10 slaves.Screw and expansion claw mounting.
