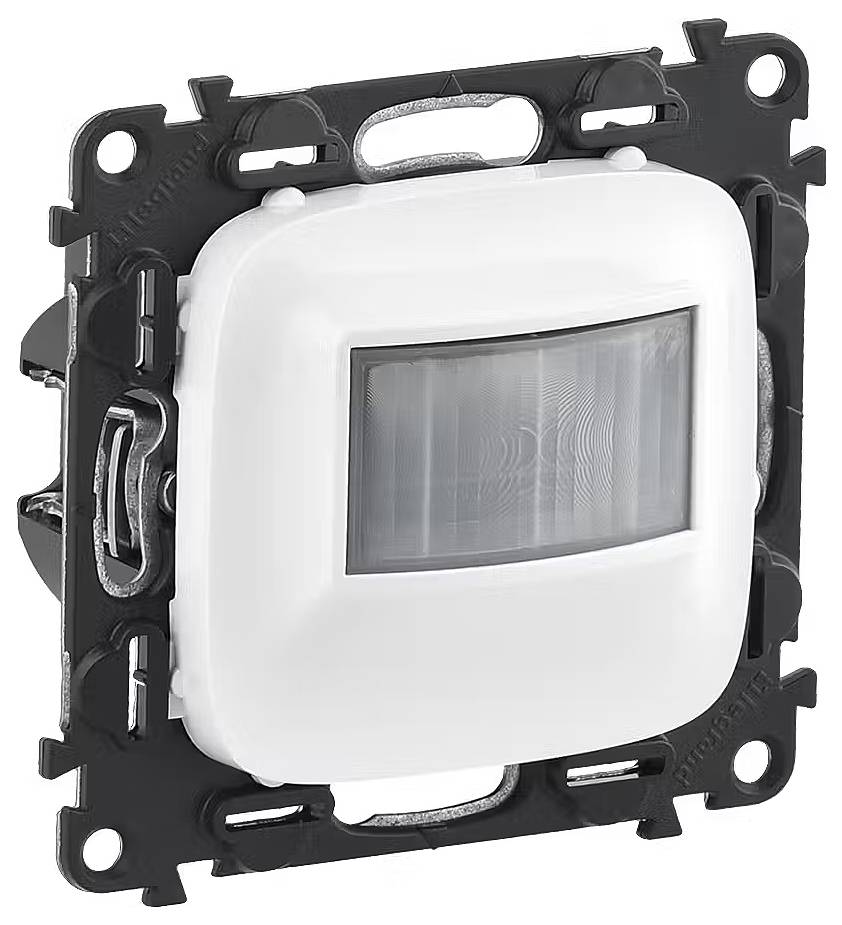

Legrand Motion detector Valena Life/Allure Aluminium 752970A 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type
Legrand 752970A VALLENA ALLURE 2-L motion detector 170° 100W LED Aluminium
- Switch type function
Motion detector
- Product type
Motion detector
- Type series
Valena Life/Allure
- Factory colour
Aluminium
- Switching capacity (light bulbs)
150 W
- Switching capacity (light tubes)
150 VA
- Switching capacity (energy saving bulbs)
100 W
- Content
1 pc(s)
8 m
- Material
Aluminium
- Switching capacity (LED)
100 W
Documents & Downloads
Datasheet
Datasheet 3360209 Legrand Motion detector Valena Life/Allure Aluminium 752970A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3360209 Legrand Motion detector Valena Life/Allure Aluminium 752970A 1 pc(s)
Description
VALENA ALLURE 2-conductor motion detector without neutral conductor for automatic switching of consumers when people within the detection range are detected. Equipped with electronic overvoltage and short-circuit protection. Connection by means of screw terminals. Colour design: Aluminium.Capturing range: 170°; suitable for extension; detection range: Gradually 2 – 8 m; switch-off delay: 5 sec. – 30 min.; brightness threshold: 5 – 1275 Lux; standby consumption: 0.01 WSuitable for the following load start: LEDs: 2 to 100W; compact fluorescent lamps: 150 – 100 W; incandescent and HV halogen lamps: 2 – 2 W; LEDs, compact fluorescent, halogen and fluorescent lamps with ferromagnetic or electronic ballast: 2 - 150 VaVia the extension input a button (NC contact) max. 10 detectors can be controlled. With sensors connected in parallel (max. 3) the minimum load increases (see data sheet).Screw and spreader claw mounting.
