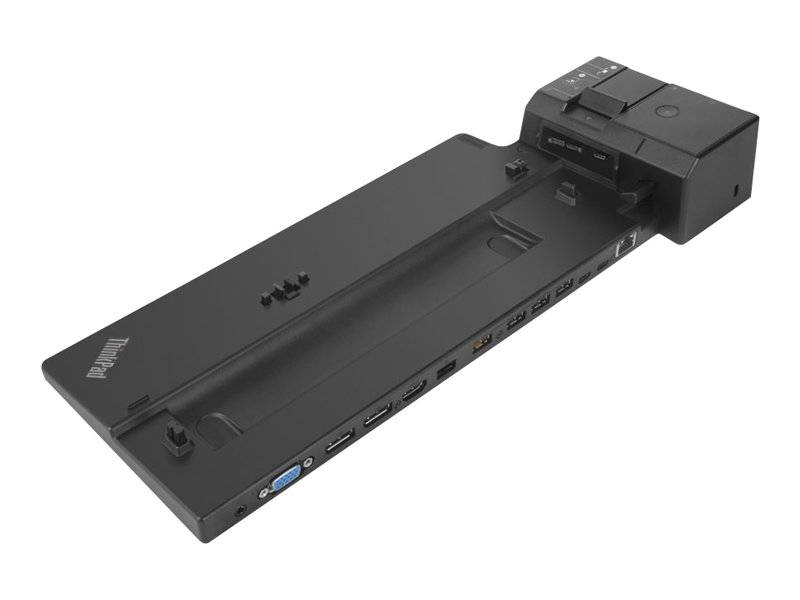

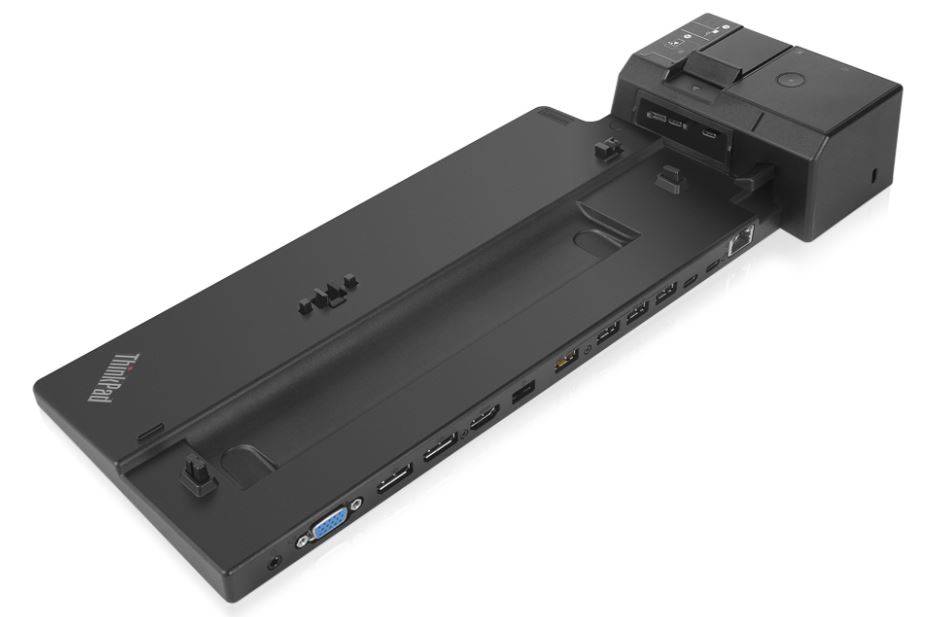

Lenovo Laptop docking station ThinkPad Ultra Dock 135W Compatible with (brand): Lenovo Thinkpad

With the appropriate ThinkPad docking station will benefit particularly user in large companies of the additional connection and extension possibilities for your ThinkPad Notebook. The new docking stations were developed especially for the new ThinkPad notebooks with side mechanical docking port and connect the notebook by simply snapping in the dock comfortably and securely with peripheral devices, such as a mouse, keyboard, USB storage, printer and external display. The power switch on the dock reflects the of the notebook, the notebook can be so, just with the power switch on and off the Dock. The Dock supports the fast charging of the Notebooks (Rapid charge), the laptop battery within the shortest possible time ready for use again. Especially in large companies facilitate the new ThinkPad docking stations of the IT department, your work by management functions such as PXE boot, Wake on LAN and the loop through the MAC address on select ThinkPad systems support. ThinkPad docking stations are well thought out down to the last detail, have comprehensive tests and are a "must-have" for every purchase of a ThinkPad notebooks. Video playback in UHD resolution via DisplayPort and HDMI; charges the batteries of selected notebooks in shortest time on (Rapid charge) achieved 80% charging in 30 minutes; an always-on-USB charging connection on the rear side for charging of tablets, mobile phones and other small devices, even when the laptop is not connected; has features that IT managers to manage, update and safety of the devices facilitate: Intel vPro, PXE boot, Wake on LAN, the loop through the MAC address; central physical security via a Master-Keyed-locking system (optional). Sold separately. Type. 4XE0 Q 56388) Configuration: 4x USB 3.1 Gen. 2 (10 Gbit/s), of which 1 x with always-on charging function; 2 x USB type C (10 Gbit/s, 5V 3A - 15 W); Gigabit Ethernet; 2x DisplayPort 1.4; 1 x HDMI 2.0; 1x VGA; 1x combi-connection for stereo microphone/headphone;Mounting for Kensington security lock; key protected laptop lock for additional laptop security.

Video interfaces VGA, HDMI.2 x display port
Tiefex Dimensions (width x height) 37.8 cm x 15.9 cm x 5.41 cm
Weight: 810 g
Localization: Korea, Europe
Power supply Power Adapter 135 Watt

Developed for ThinkPad A485;L 480, L 580, P52 s; T480; T 480 S;T580; X1 Carbon 20 KG, 20KH; X280

For details on maximum resolution
4096 x 2160 - 60 Hz (only display port)
4096 x 2160 - 60 Hz (HDMI only)
2048 x 1536 - 85 Hz (only VGA)
4096 x 2160 @ 30 Hz, 4096 x 2160 @ 30 Hz (DisplayPort and HDMI simultaneously)
4096 x 2160 @ 30 Hz, 4096 x 2160 @ 30 Hz (display port 1 and port 2 simultaneously display)
4096 x 2160 @ 60 Hz, 2048x1536@85Hz (display port and VGA simultaneously)
4096 x 2160 @ 60 Hz, 2048x1536@85Hz (HDMI and VGA simultaneously)
4096 x 2160 @ 60 Hz ,1920 x1080 @ 60 Hz ,1920 x1080 @ 60 Hz (display port 1 and port 2 and HDMI display simultaneously)
4096 x 2160 @ 30 Hz ,4096 x 2160 @ 30 Hz ,2048 x 1536 @ 85 Hz (DisplayPort and HDMI and VGA simultaneously)

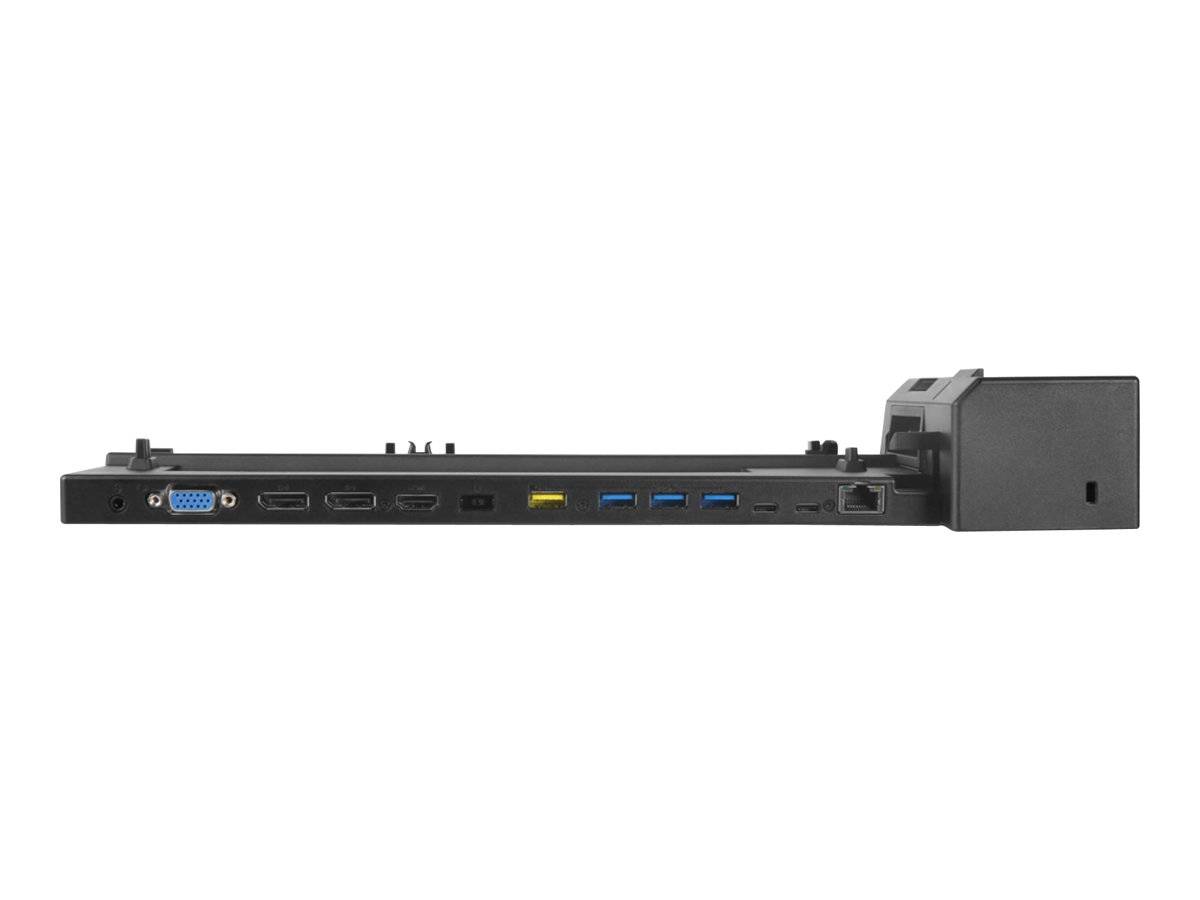

Interfaces
1x USB 3.1 Gen 2 with always-on-charging function
3x USB 3.1 Gen 2
2 x USB-C
1x network, 10Base-T/100 ba se-TX/1000ba se-T-RJ-45
2 x Audio/Video Display port 20-pin display port
1 x Audio/Video HDMI 19-pin HDMI type A
1 x display/video-VGA 15-pin HD D-Sub (HD-15)
1 x Audio Headphones/microphone mini phone stereo 3.5 mm
1 x docking replicator

Features: Slot for security lock cable lock (available separately), WakeOn-LAN, support of Preboot Execution Evironment (PXE), MAC address throughput
Identification UL, cUL, NOM, FCC, ICES
Power supply: power supply unit 135 Watt
