Lenovo USB-C® docking station Compatible with (brand): Lenovo USB-C® powered
EAN:
Part number:
Item no:
Lenovo G0AE0065EU USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C®
- Connecton B (or outputs):
- No. of supported monitors:
- Maximum resolution: 3840 x 2160 p
- Key features: USB-C® powered
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- HDMI version 2.1
- Product type
USB-C® docking station
- Type A
USB-C®

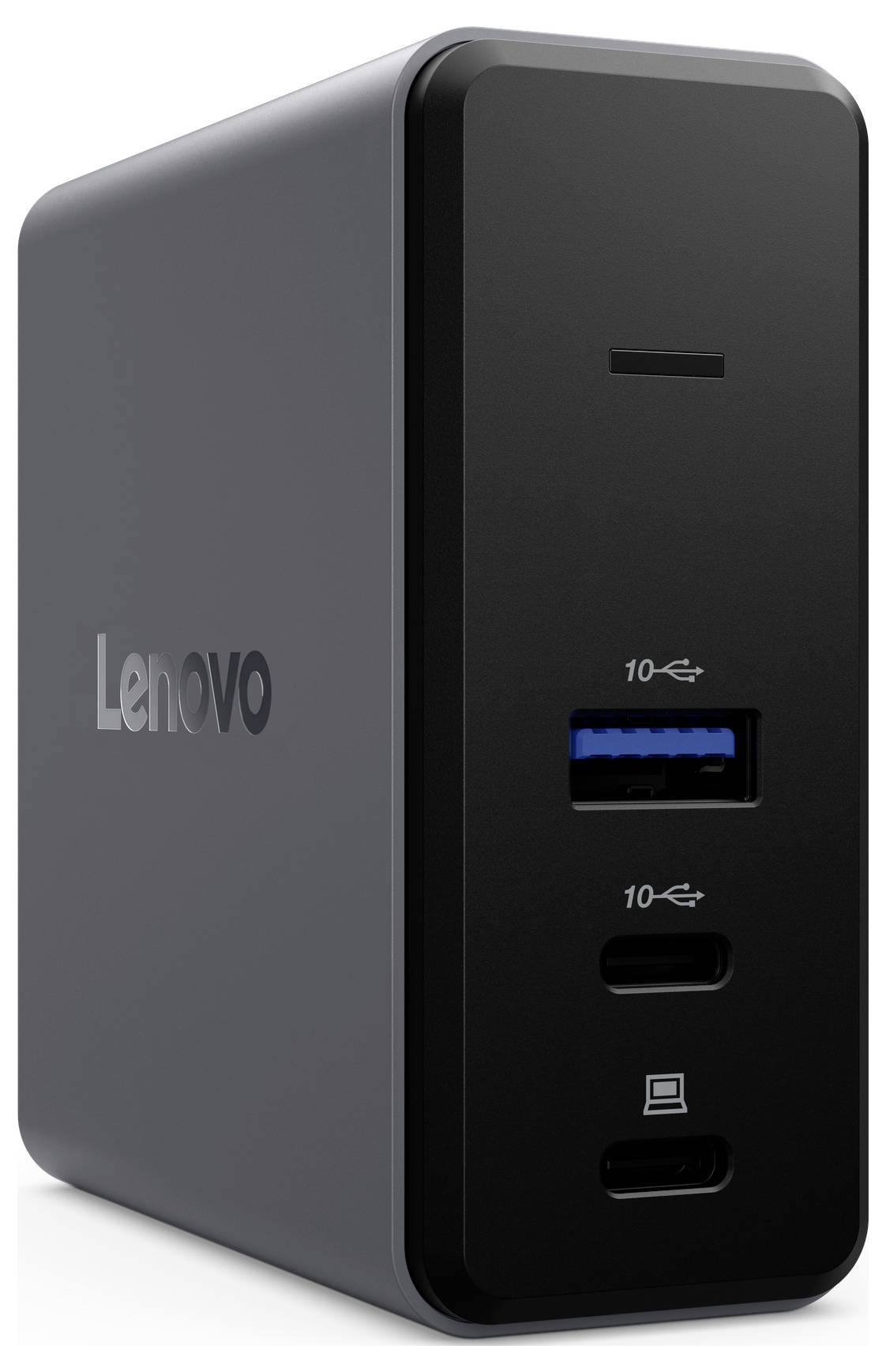

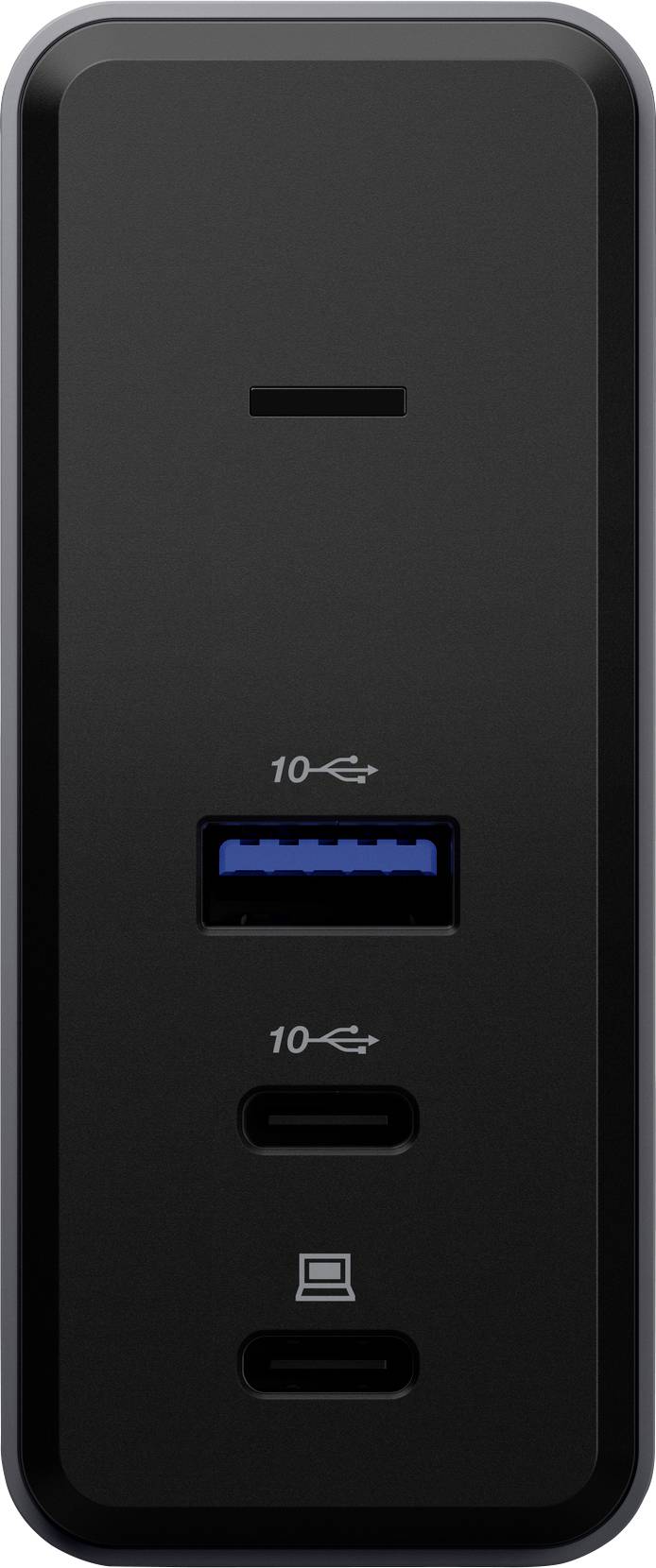

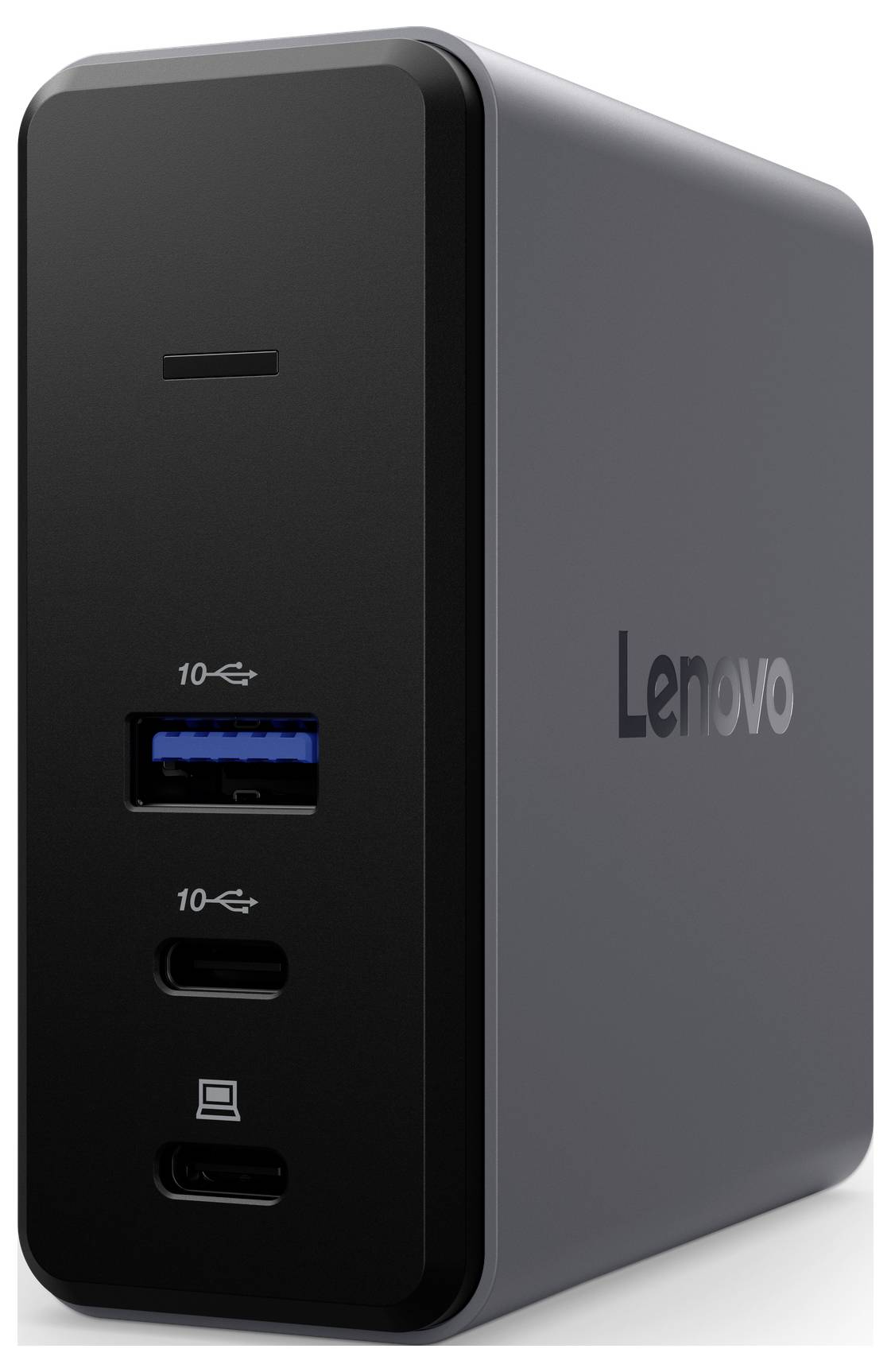

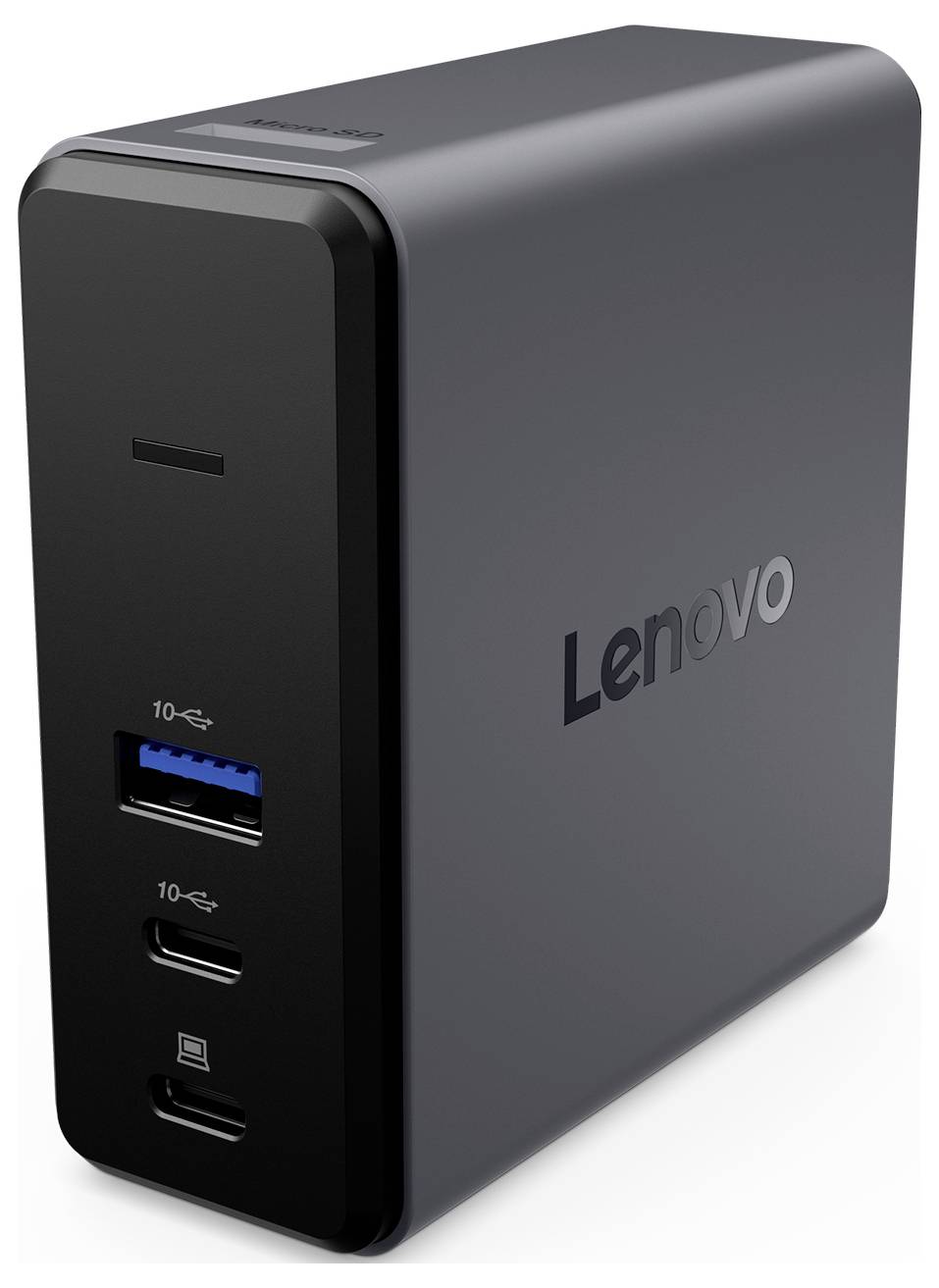

- Interfaces

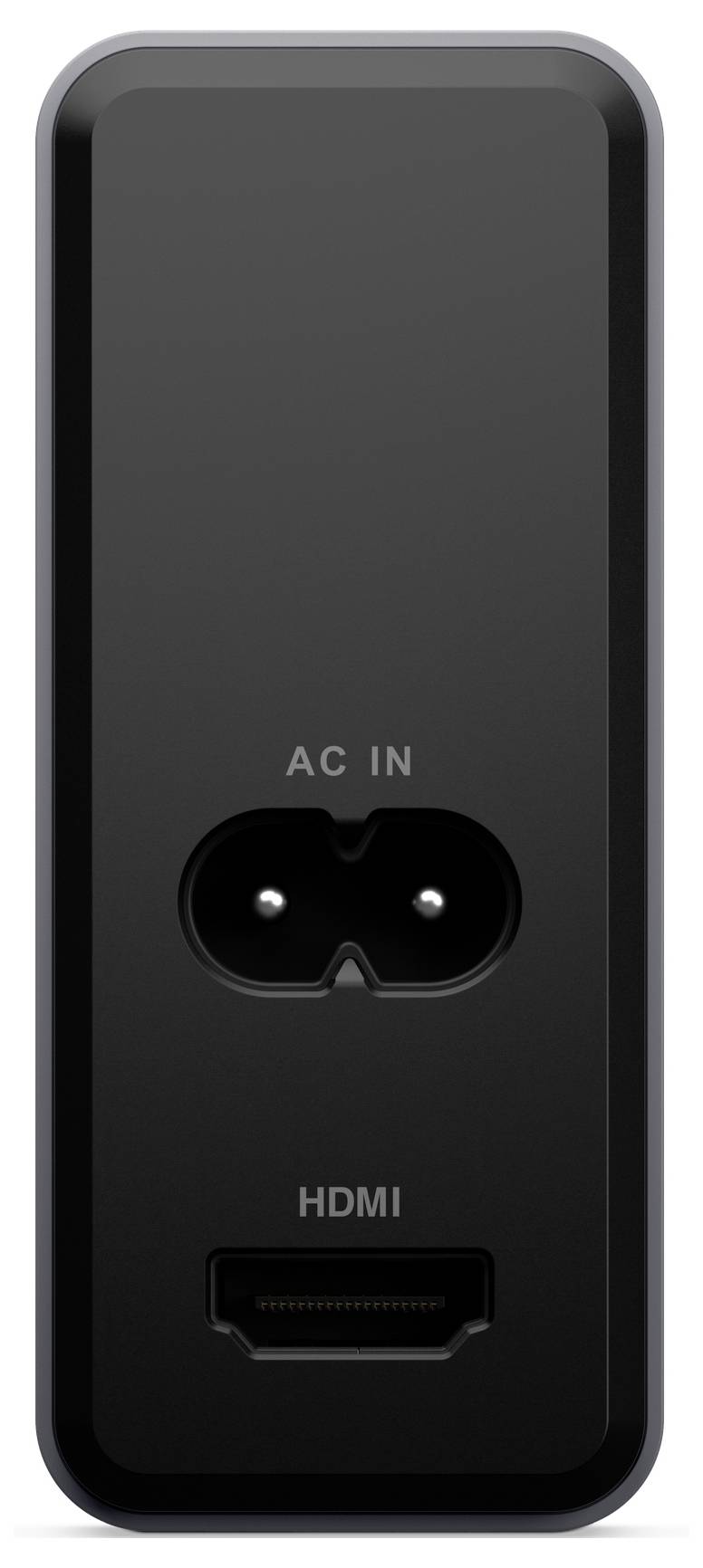

HDMI out
USB
USB-C
- Suitable for
Notebook
- Resolution (max.)
3840 x 2160 p
- Cable length
0 cm
- Factory colour
Black
Grey
- Features
USB-C® powered
- Width
80 mm
- Height
33.5 mm
- Depth
80 mm
- Weight
281 g
- Dim
(W x H x D) 80 x 33.5 x 80 mm
- Compatible with (brand)
Lenovo
- Frame rate
60 Hz
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
1 x
- Charging method (Power Delivery)
with USB Power Delivery
- Power supply (details)
100 - 240 V
- Transfer type
Corded
- Compatible with
Yoga Convertible 9i 2-in-1
Yoga Convertible 7 2-in-1
Legion Go Gen 1
- UKCA
yes

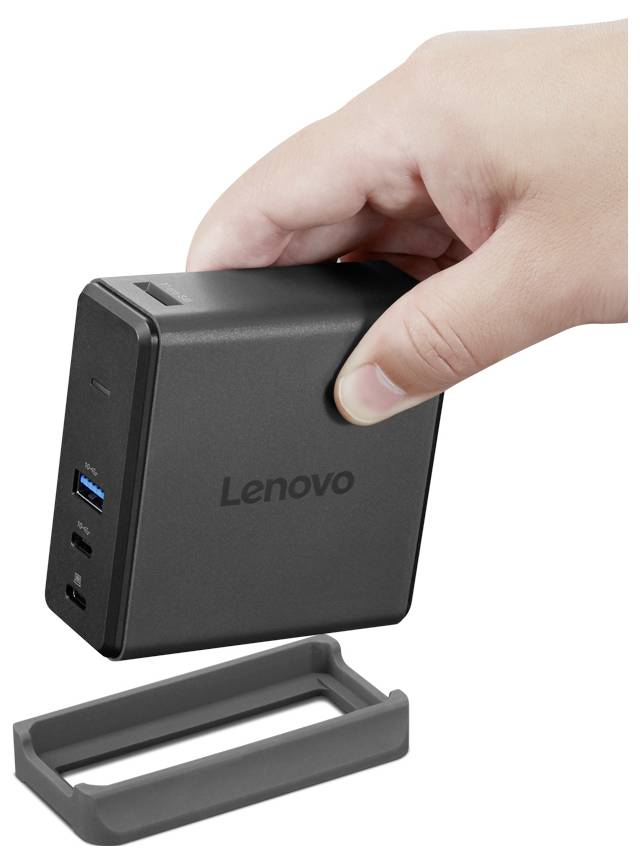

- Stand included
yes
- Operating temperature (T-T)
0 - 40 °C
- Ethernet LAN
no
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
- Microphone in
no
- Card reader integrated
yes
- USB Power Delivery up to
60 W
- Maximum digital resolution
3840 x 2160 p
- Operating relative humidity (H-H)
8 - 90 %
- Package weight
574 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595510 Lenovo USB-C® docking station Compatible with (brand): Lenovo USB-C® powered
Description
The Lenovo G0AE0065EU is a versatile docking station developed for an efficient port expansion. Thanks to the connection possibility via a USB-C interface it supports several connectivity options, including HDMI for high-resolution video output, and delivers a power of up to 60 W. The slim design ensures compatibility with modern devices, while the integration of the gallium nitride (GaN) technology enables an efficient energy management. This docking station is Ideal for users who want to improve their workstation configuration with reliable performance and robust features.
This device operates in a temperature range from 0 °C to 40 °C and is designed in such a way that it can withstand the daily environmental conditions. With a support for resolutions of up to 3840 x 2160 at 60 Hz it provides for sharp and clear images for all your visual requirements. The docking station complies with various standards, including FCC and RCM, to ensure safety and reliability during use.
This text is machine translated.
