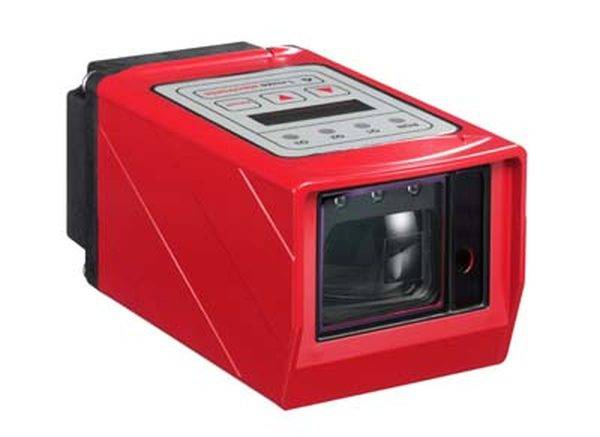

Leuze Electronic 50040720 Optical proximity sensor 1 pc(s) Max. range (open field): 30.000 mm
EAN:
Part number:
Item no:
Product type
Optical proximity sensor
Max. range
30.000 mm
Type
50040720
Content
1 pc(s)
Transmitter type
SC laser red
Technical specifications
- Product type
Optical proximity sensor
- Type
50040720
- Content
1 pc(s)
- Transmitter type
SC laser red
- Beam diameter
6 mm
- Resolution
0.1 mm
- Range (min.) (open area)
200 mm
30.000 mm
- Thread type connection side
M12
- Manufacturer part #
50040720
- No. of pins
8
DC
Other
0-45 °C
FALSE
Push button
Other
Connector M12
PNP/NPN
Anticoincidence
Safety class 2
Manual adjustment
None
None
Cuboid
Class 2
Laser diode, red light
Other
10-30 V
FALSE
Glass
Other
IP67
79 mm
69 mm
150 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983136 Leuze Electronic 50040720 Optical proximity sensor 1 pc(s) Max. range (open field): 30.000 mm
Description
Touch system: Against object; light source: Laser, red; light spot size: 6 mm; measuring range: 200 ... 30,000 mm; Geometric resolution: 0.1 mm Display resolution parameterizable 1.0 mm; Supply voltage: 10 ... 30 V, DC; Digital switching inputs: 2 pc.; Digital switching outputs: 3 pc.; Connection: Round plug, M12, 8-pin; Dimensions: 79 mm x 69 mm x 150 mm; Controls: Foil keyboard, LCD display
