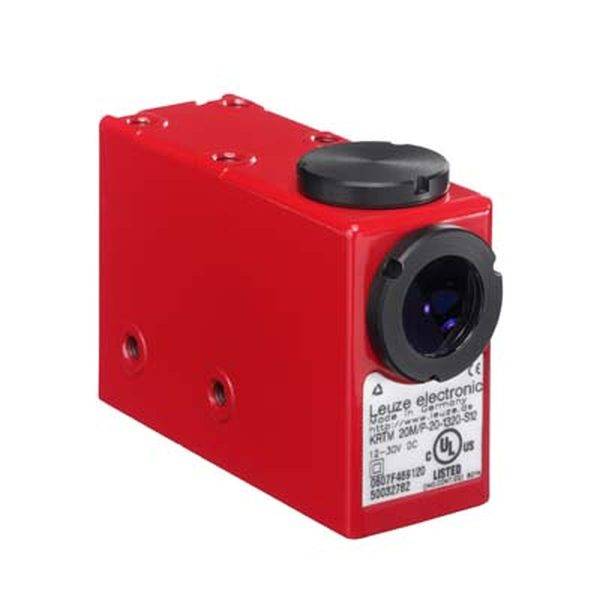

Leuze Electronic 50041007 50041007 Contrast sensor 1 pc(s) Unblinking (L x W x H) 80 x 30 x 53 mm
EAN:
Part number:
Item no:
Product type
Contrast sensor
Type
50041007
Content
1 pc(s)
Contact type
Unblinking
Length
80 mm
Technical specifications
- Product type
Contrast sensor
- Type
50041007
- Content
1 pc(s)
- Contact type
Unblinking
- Length
80 mm
- Width
30 mm
- Height
53 mm
- Dim
(L x W x H) 80 x 30 x 53 mm
DC
Other
-25-60 °C
FALSE
16000 Hz
1
1
Connector M12
PNP
Other
FALSE
12-30 V
Safety class 3
Manual adjustment
Cuboid
Other
Multi-coloured LED
FALSE
FALSE
22 mm
Other
IP67
TRUE
TRUE
30 mm
80 mm
53 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981442 Leuze Electronic 50041007 50041007 Contrast sensor 1 pc(s) Unblinking (L x W x H) 80 x 30 x 53 mm
Description
Special version: Auto collimation, time function, cutting mark system; operating range: 0.018 ... 0.022 m; light source: LED, RGB; supply voltage: 12 ... 30 V, DC; Analogue outputs: 1 pieces; Digital switching outputs: 1 pieces; Analogue output: Current; Switching output 1: Transistor, PNP, light-switching; Switching frequency: 16,000 Hz; connection: round plug, M12, 5-pin; dimensions: 30 mm x 80 mm x 53 mm; material housing: metal; operating elements: film keyboard, via service interface
