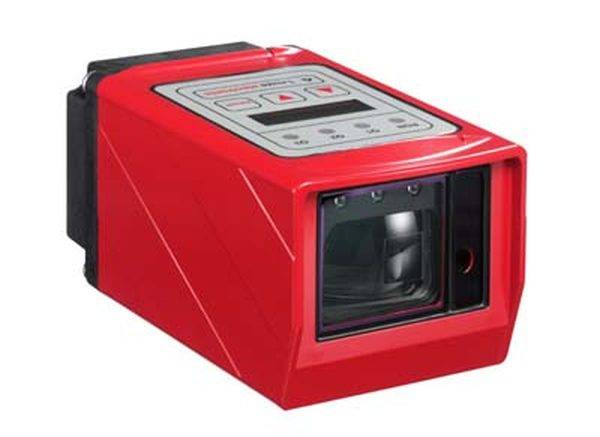

Leuze Electronic 50041204 Optical proximity sensor 1 pc(s) Max. range (open field): 65.000 mm (L x W x H) 150 x 79 x 69
EAN:
Part number:
Item no:
Product type
Optical proximity sensor
Max. range
65.000 mm
Type
50041204
Content
1 pc(s)
Contact type
Antivalent
Technical specifications
- Product type
Optical proximity sensor
- Type
50041204
- Content
1 pc(s)
- Contact type
Antivalent
- Transmitter type
Laser diode
- Beam diameter
6 mm
- Laser category
2
- Resolution
0.1 mm
- Range (min.) (open area)
200 mm
65.000 mm
- Min. temperature
0 °C
- Max. temperature
45 °C
- Length
150 mm
- Width
79 mm
- Height
69 mm
- Dim
(L x W x H) 150 x 79 x 69 mm
- Thread type connection side
M12
- Manufacturer part #
50041204
- No. of pins
8
DC
Other
0-45 °C
FALSE
Push button
Other
Connector M12
PNP/NPN
Anticoincidence
Safety class 2
Manual adjustment
None
None
Cuboid
Class 2
Laser diode, red light
Other
10-30 V
FALSE
Glass
Other
IP67
79 mm
69 mm
150 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983134 Leuze Electronic 50041204 Optical proximity sensor 1 pc(s) Max. range (open field): 65.000 mm (L x W x H) 150 x 79 x 69
Description
Probe system: Against object; light source: Laser, red; light spot size: 6 mm; measuring range: In conjunction with cooperative target CTS 100x100200 ... 65,000 mm; Geometric resolution: 0.1 mm Display resolution parameterizable 1.0 mm; Supply voltage: 10 ... 30 V, DC; Digital switching inputs: 2 pieces; Digital switching outputs: 2 pieces; Interface: RS 485; Connection: Round plug, M12, 8-pin; Dimensions: 79 mm x 69 mm x 150 mm; control elements: membrane keypad, LCD display
