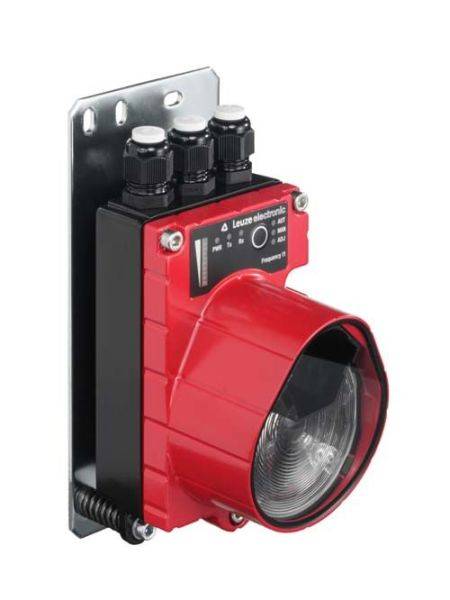

Leuze Electronic 50102313 Leuze Optical data transmission Profibus 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Optical data transmission
- Interfaces
Profibus
- Type
Leuze
- Min. operating temperature
-5 °C
- Operating temperature
-5 °C (min)
- Manufacturer part #
50102313
FALSE
Other
Other
9.6 kBit/s
Other
Other
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982423 Leuze Electronic 50102313 Leuze Optical data transmission Profibus 1 pc(s)
Description
Pre-assembled on: Mounting plate; special version: Wide-angle design, operation of parallel light axes, no influence on reflective surfaces; working range: 200 ... 80,000 mm; transmission frequency: F2; usable opening angle Transmitter: 2 °; supply voltage: 18 ... 30 V, DC; INTERFACE: PROFIBUS DP, RS 485; PROFIBUS DP, Transmission speed: 0.0096 ... 1.5 Mbps; connection: Terminal, M16; dimensions: 89.25 mm x 196.5 mm x 111.8 mm; ambient temperature operation: -5 ... 50 °C; protection class IP 65
