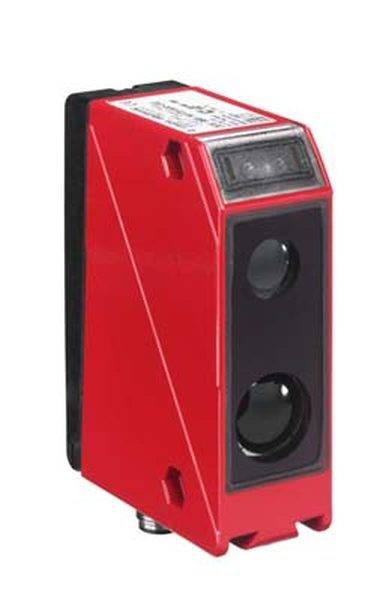

Leuze Electronic 50106720 Optical proximity sensor 1 pc(s) Max. range (open field): 600 mm (L x W x H) 30 x 90 x 70 mm
EAN:
Part number:
Item no:
Product type
Optical proximity sensor
Max. range
600 mm
Type
50106720
Content
1 pc(s)
Transmitter type
LED IR
Technical specifications
- Product type
Optical proximity sensor
- Type
50106720
- Content
1 pc(s)
- Transmitter type
LED IR
- Outputs
Current (analogue)
- Range (min.) (open area)
100 mm
600 mm
- Tolerance ±
1.5 %
- Length
30 mm
- Width
90 mm
- Height
70 mm
- Dim
(L x W x H) 30 x 90 x 70 mm
- Thread type connection side
M12
- Manufacturer part #
50106720
- No. of pins
5
DC
Other
-20-50 °C
FALSE
Push button
0 mA ... 20 mA / 4 mA ... 20 mA
Connector M12
PNP/NPN
Anticoincidence
Safety class 2
Manual adjustment
None
None
Cuboid
Other
Infrared light
1.5 %
Triangulation
0.5 %
18-30 V
FALSE
Glass
Other
IP67
30 mm
90 mm
70 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983126 Leuze Electronic 50106720 Optical proximity sensor 1 pc(s) Max. range (open field): 600 mm (L x W x H) 30 x 90 x 70 mm
Description
Probe system: Against object; light source: LED, infrared; light spot size: 15 mm x 15 mm; measuring range: 100 ... 600 mm; Geometric resolution: 0.1 ... 0.5 mm; accuracy: 1.5 %; supply voltage: 18 ... 30 V, DC; Digital switching inputs: 1 pieces; Analogue outputs: 1 pieces; Digital switching outputs: 1 pieces; Output: Current; connection: Round plug, M12, 5-pin; Dimensions: 30 mm x 90 mm x 70 mm; control elements: film keyboard, PC software
