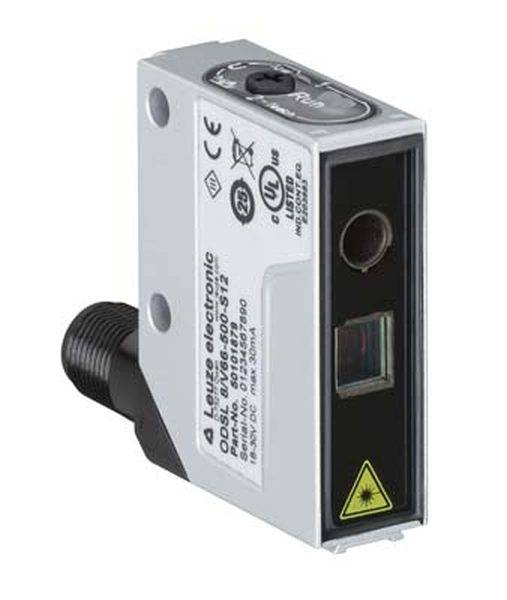

Leuze Electronic 50108361 Optical proximity sensor 1 pc(s) Max. range (open field): 500 mm
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Optical proximity sensor
Max. range
500 mm
Type
50108361
Content
1 pc(s)
Technical specifications
- Packaging type
Piece
- Product type
Optical proximity sensor
- Type
50108361
- Content
1 pc(s)
- Transmitter type
SC laser red
- Outputs
Current (analogue)
- Resolution
0.1 mm
- Range (min.) (open area)
20 mm
500 mm
- Thread type connection side
M12
- Manufacturer part #
50108361
- No. of pins
5
DC
Other
-40-50 °C
FALSE
Push button
0 mA ... 20 mA / 4 mA ... 20 mA
Connector M12
PNP/NPN
Anticoincidence
Safety class 2
Manual adjustment
None
None
Cuboid
Class 2
Laser diode, red light
Triangulation
18-30 V
FALSE
Glass
Other
IP67
15 mm
48 mm
38 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983115 Leuze Electronic 50108361 Optical proximity sensor 1 pc(s) Max. range (open field): 500 mm
Description
Touch system: Against object; light source: Laser, red; light spot size: 2 mm x 6 mm; measuring range: 20 ... 500 mm; Geometric resolution: 0.1 ... 0.5 mm; accuracy, close range: 2 %; accuracy, long range: 4 %; Supply voltage: 18 ... 30 V, DC; Analogue outputs: 1 pcs.; Digital switching outputs: 2 pcs.; Output: Current; Connection: Round plug, M12, 5-pin, Rotates 90°; Dimensions: 15 mm x 48 mm x 38 mm; Control elements: Rotary switch
