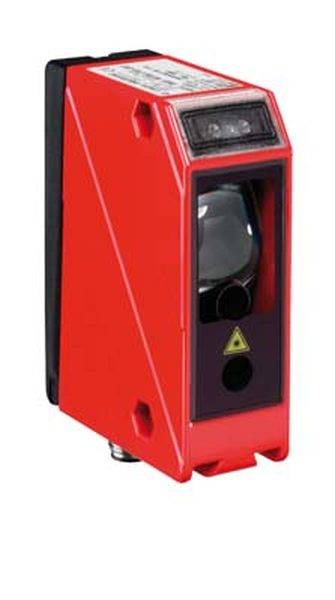

Leuze Electronic 50109290 Optical proximity sensor 1 pc(s) Max. range (open field): 10.000 mm
EAN:
Part number:
Item no:
Product type
Optical proximity sensor
Max. range
10.000 mm
Type
50109290
Content
1 pc(s)
Transmitter type
SC laser red
Technical specifications
- Product type
Optical proximity sensor
- Type
50109290
- Content
1 pc(s)
- Transmitter type
SC laser red
- Outputs
Current (analogue)
- Resolution
3.0 mm
- Range (min.) (open area)
300 mm
10.000 mm
- Tolerance ±
0.5 %
- Thread type connection side
M12
- Manufacturer part #
50109290
- No. of pins
5
DC
Other
-20-50 °C
FALSE
Push button
0 mA ... 20 mA / 4 mA ... 20 mA
Connector M12
PNP/NPN
Anticoincidence
Safety class 2
Manual adjustment
None
None
Cuboid
Class 2
Laser diode, red light
12 mm²
0.5 %
Other
18-30 V
FALSE
Glass
Other
IP67
30 mm
90 mm
70 mm
300-10000 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983051 Leuze Electronic 50109290 Optical proximity sensor 1 pc(s) Max. range (open field): 10.000 mm
Description
Touch system: Against object; light source: Laser, red; light spot size: 7 mm x 7 mm; measuring range: 300 ... 10,000 mm; Geometric resolution: 3.0 mm; Accuracy: 0.5 %; Supply voltage: 18 ... 30 V, DC; Digital switching inputs: 1 pieces; Analogue outputs: 1 pieces; Digital switching outputs: 1 pieces; Output: Current; connection: Round plug, M12, 5-pin; Dimensions: 30 mm x 90 mm x 70 mm; control elements: film keyboard, PC software
