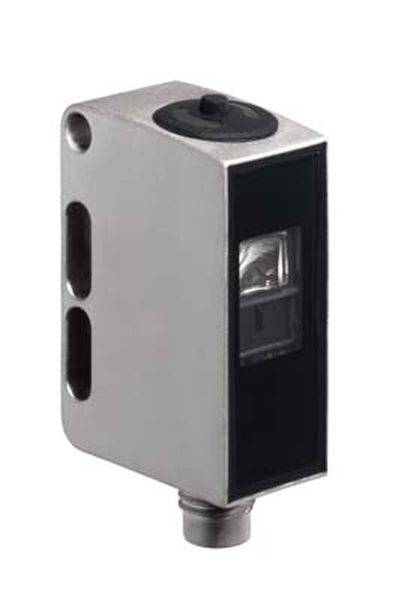

Leuze Electronic 50110602 50110602 Contrast sensor 1 pc(s) 1 PNP (L x W x H) 25 x 14 x 35.5 mm
EAN:
Part number:
Item no:
Product type
Contrast sensor
Type
50110602
Content
1 pc(s)
Features
Incl. enclosure
Contact type
1 PNP
Technical specifications
- Product type
Contrast sensor
- Type
50110602
- Content
1 pc(s)
- Features
Incl. enclosure
- Contact type
1 PNP
- Connection
Connector
- Min. temperature
-30 °C
- Max. temperature
55 °C
- Length
25 mm
- Width
14 mm
- Height
35.5 mm
- Dim
(L x W x H) 25 x 14 x 35.5 mm
DC
Stainless steel
-30-55 °C
FALSE
10000 Hz
1
Connector M12
PNP
Other
FALSE
10-30 V
Safety class 3
Teach-In
Cuboid
Other
White light
FALSE
FALSE
15 mm
Other
IP67
14 mm
35.5 mm
25 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981418 Leuze Electronic 50110602 50110602 Contrast sensor 1 pc(s) 1 PNP (L x W x H) 25 x 14 x 35.5 mm
Description
Special version: Teach-in, time function; operating range: 0.011 ... 0.015 m; light source: LED, white; supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 pieces; switching output 1: Transistor, PNP, light/dark switchable; switching frequency: 10,000 Hz; Connection: Line with circular connector, 200 mm, M12, 4 -pin; dimensions: 14 mm x 35.5 mm x 25 mm; material housing: stainless steel; operating elements: teach-button
This text is machine translated.
This text is machine translated.
