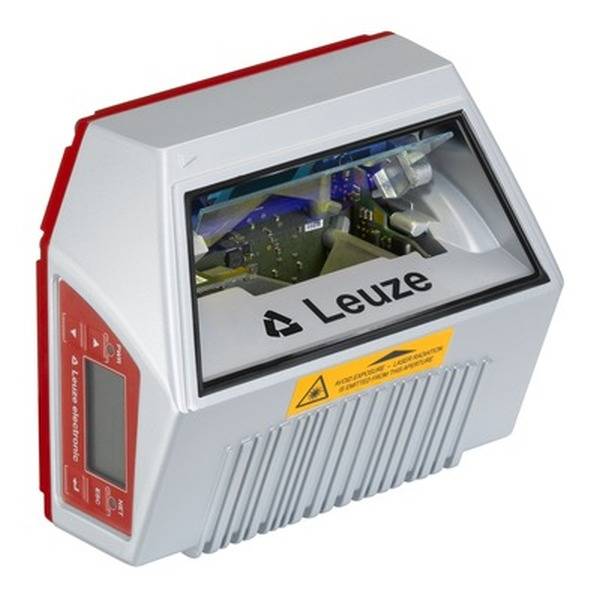

Leuze Electronic 50113203 Barcode reader 50113203 1 pc(s)
EAN:
Part number:
Item no:
Product type
Barcode reader
Type
50113203
Content
1 pc(s)
Voltage type
DC
Suitable for safety functions
FALSE
Technical specifications
- Product type
Barcode reader
- Type
50113203
- Content
1 pc(s)
DC
FALSE
0-40 °C
10 Hz
Other
Other
10-30 V
Safety class 3
FALSE
Class 2
FALSE
FALSE
FALSE
650 nm
173 mm
84 mm
147 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2980568 Leuze Electronic 50113203 Barcode reader 50113203 1 pc(s)
Description
Functions: AutoConfig, AutoControl, AutoRefAct, Codefragment Technique, Adjustment Mode, Reference code comparison; scan rate, typical: 1,000 scans/s; read distance: 1,000 ... 2,400 mm; reading technology: Swivel mirror scanner; light beam outlet: Zero position at a lateral angle of 90°; supply voltage: 10 ... 30 V, DC; Selectable inputs/outputs: 4 pcs; Interface: PROFINET, USB; Connection: USB; Dimensions: 173 mm x 84 mm x 147 mm; Display: LED, monochrome graphic display 128x64 pixels, with background lighting; Control elements: Key(s), via service interface; Ambient temperature Operation: 0 ... 40 °C; approvals c UL us
