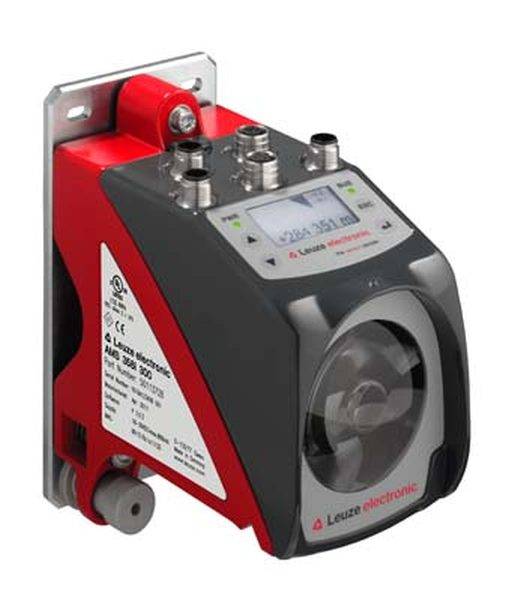

Leuze Electronic 50113678 Optical proximity sensor 1 pc(s) Max. range (open field): 120.000 mm
EAN:
Part number:
Item no:
Product type
Optical proximity sensor
Max. range
120.000 mm
Type
50113678
Content
1 pc(s)
Transmitter type
Laser diode
Technical specifications
- Product type
Optical proximity sensor
- Type
50113678
- Content
1 pc(s)
- Transmitter type
Laser diode
- Laser category
2
- Range (min.) (open area)
200 mm
120.000 mm
- Min. temperature
-5 °C
- Max. temperature
50 °C
- Thread type connection side
M12
- Manufacturer part #
50113678
- No. of pins
5
DC
Other
-5-50 °C
FALSE
0.05 Hz
Other
Other
Connector M12
Other
Other
0.8 Hz
Safety class 3
Manual adjustment
None
None
Cuboid
PROFIBUS
Class 2
Laser diode, red light
Other
18-30 V
FALSE
Other
Other
IP65
84 mm
166.5 mm
159 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983096 Leuze Electronic 50113678 Optical proximity sensor 1 pc(s) Max. range (open field): 120.000 mm
Description
Preassembled with: Mounting plate; Light source: Laser; Protection class: 2; Measuring range: 200 ... 120,000 mm; absolute measurement accuracy: 2 mm; reproducibility (3 Sigma): 1.5 mm; travel speed max.: 10 m/s; supply voltage: 18 ... 30 V, DC; interface: PROFIBUS DP, SSI; connection: Round plug, M12, 5-pin; dimensions: 84 mm x 166.5 mm x 159 mm; material housing: metal; display: LC display, LED; ambient temperature operation: -5 ... 50 °C; protection class IP 65
