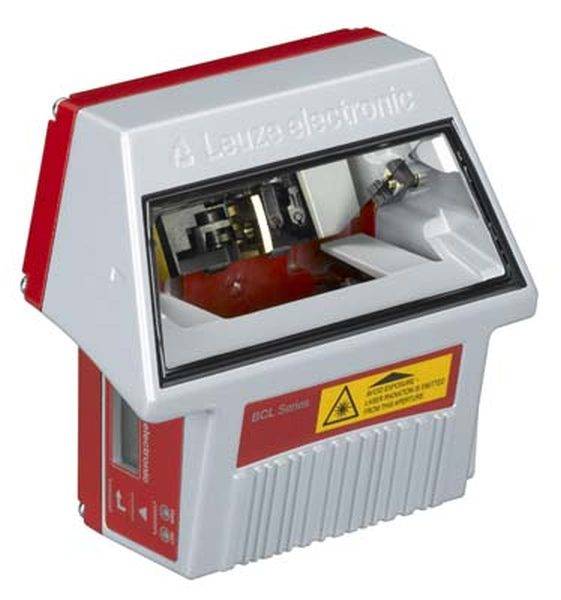

Leuze Electronic 50116183 Barcode reader 50116183 1 pc(s)
EAN:
Part number:
Item no:
Product type
Barcode reader
Type
50116183
Content
1 pc(s)
Voltage type
DC
Suitable for safety functions
FALSE
Technical specifications
- Product type
Barcode reader
- Type
50116183
- Content
1 pc(s)
DC
FALSE
0-40 °C
10 Hz
Other
Plug-in connection
18-30 V
Safety class 3
FALSE
Class 1
FALSE
FALSE
FALSE
655 nm
125 mm
58 mm
110 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2980563 Leuze Electronic 50116183 Barcode reader 50116183 1 pc(s)
Description
Functions: AutoControl, AutoConfig, AutoRefAct, Codefragment Technique, Adjustment Mode, LED display, reference code comparison; scan rate, typical: 1,000 scans/s; reading distance: 80 ... 680 mm; reading technology: Swivel mirror scanner; light beam outlet: Zero position at a lateral angle of 90°; supply voltage: 18 ... 30 V, DC; selectable in/outputs: 2 pcs.; interface: RS 232, RS 422, USB 2.0; connection: Connector strip; Dimensions: 125 mm x 58 mm x 110 mm; Display: LED, monochrome graphic display 128 x 32 pixels; ambient temperature operation: 0 ... 40 °C; approvals c UL us
