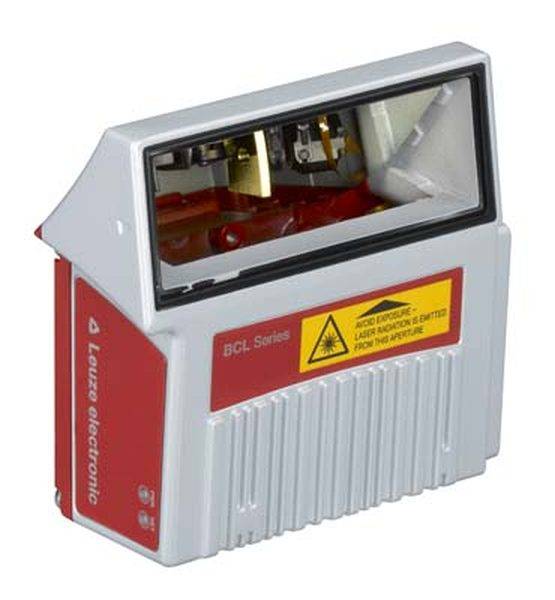

Leuze Electronic 50116196 Barcode reader 50116196 1 pc(s)
EAN:
Part number:
Item no:
Product type
Barcode reader
Type
50116196
Content
1 pc(s)
Voltage type
DC
Suitable for safety functions
FALSE
Technical specifications
- Product type
Barcode reader
- Type
50116196
- Content
1 pc(s)
DC
FALSE
0-40 °C
Other
Plug-in connection
18-30 V
Safety class 3
FALSE
Class 1
FALSE
FALSE
FALSE
655 nm
103 mm
44 mm
96 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2980549 Leuze Electronic 50116196 Barcode reader 50116196 1 pc(s)
Description
Functions: AutoConfig, AutoControl, AutoRefAct, Codefragment Technique, Adjustment Mode, LED display, reference code comparison; scan rate, typical: 1,000 scans/s; reading distance: 30 ... 290 mm; reading technology: Raster scanner with deflection mirror; light beam outlet: Lateral with deflection mirror; supply voltage: 18 ... 30 V, DC; selectable in/outputs: 2 pcs.; interface: RS 232, RS 422, USB 2.0; connection: Connector strip; Dimensions: 103 mm x 44 mm x 96 mm; Display: LED; Ambient temperature operation: 0 ... 40 °C; approvals c UL us
