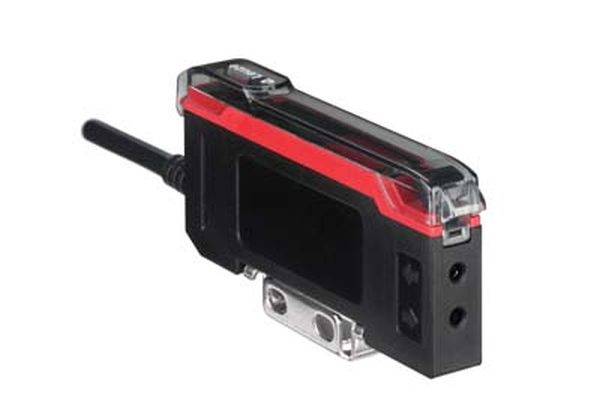

Leuze Electronic 50122456 Fiber optics
EAN:
Part number:
Item no:
Product type
Fiber optics
Width
10 mm
Height
31.5 mm
Length
72 mm
Type
50122456
Technical specifications
- Type
50122456
- Product type
Fiber optics
- Manufacturer
Leuze Electronic
- Operating temperature (min.)
-10 °C
- Operating temperature (max.)
55 °C
- Width
10 mm
- Height
31.5 mm
- Length
72 mm
- Dim
(L x W x H) 72 x 10 x 31.5 mm
DC
LED
Plastic
-10-55 °C
FALSE
2500 Hz
2
Connector M8
PNP/NPN
FALSE
12-24 V
Manual adjustment
Cuboid
Polarity free red light
Other
Other
IP50
FALSE
FALSE
FALSE
FALSE
10 mm
31.5 mm
72 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981599 Leuze Electronic 50122456 Fiber optics
Description
Special version: Time function; light source: LED; supply voltage: 12 ... 24 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, push-pull; switching output 2: Transistor, PNP; Switching frequency: 2,500 Hz; interface: IO-Link; connection: round plug, M8, 4-pin; Dimensions: 10 mm x 31.5 mm x 72 mm; material housing: plastic; display: LED; control elements: slide switch, rocker switch
