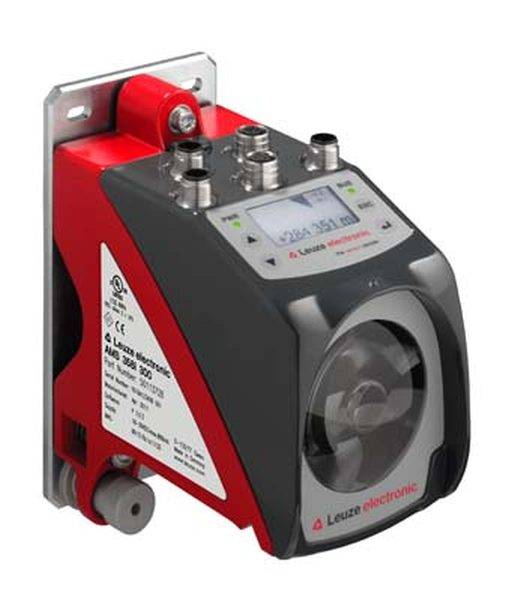

Leuze Electronic 50127221 Optical proximity sensor 1 pc(s) Max. range (open field): 200.000 mm
EAN:
Part number:
Item no:
Product type
Optical proximity sensor
Max. range
200.000 mm
Type
50127221
Content
1 pc(s)
Laser category
2
Technical specifications
- Product type
Optical proximity sensor
- Type
50127221
- Content
1 pc(s)
- Laser category
2
- Range (min.) (open area)
200 mm
200.000 mm
- Min. temperature
-5 °C
- Max. temperature
50 °C
- Thread type connection side
M12
- Manufacturer part #
50127221
- No. of pins
4
DC
Other
-5-50 °C
FALSE
0.08 Hz
Other
Other
Connector M12
Other
Other
0.8 Hz
Safety class 3
Manual adjustment
None
None
Cuboid
SSI
Class 2
Laser diode, red light
Other
18-30 V
FALSE
Other
Other
IP65
84 mm
166.5 mm
159 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983063 Leuze Electronic 50127221 Optical proximity sensor 1 pc(s) Max. range (open field): 200.000 mm
Description
Preassembled with: Mounting plate; Light source: Laser; Protection class: 2; Measuring range: 200 ... 200,000 mm; absolute measurement accuracy: 3 mm; reproducibility (3 Sigma): 2.1 mm; travel speed max.: 10 m/s; supply voltage: 18 ... 30 V, DC; interface: PROFINET, SSI; connection: Circular plug, M12, 4-pin; dimensions: 84 mm x 166.5 mm x 159 mm; material housing: metal; display: LED, LC display; ambient temperature operation: -5 ... 50 °C; protection class IP 65
