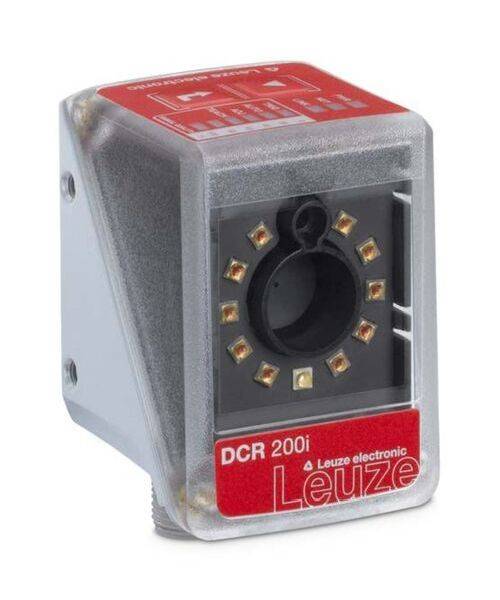

Leuze Electronic 50128783 Barcode reader 50128783 1 pc(s)
EAN:
Part number:
Item no:
Product type
Barcode reader
Type
50128783
Content
1 pc(s)
Width
43 mm
Model
Fix mounted
Technical specifications
- Product type
Barcode reader
- Type
50128783
- Content
1 pc(s)
43 mm
Fix mounted
61 mm
44 mm
220 mm
1
1
Other
FALSE
30 V
IP65
RS-422
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2980558 Leuze Electronic 50128783 Barcode reader 50128783 1 pc(s)
Description
Software functions: Reading 1D codes, reading 2D codes; reading distance: 50 ... 220 mm; light source: LED, red; camera resolution horizontal: 1,280 px; camera vertical resolution: 960 px; supply voltage: 18 ... 30 V, DC; Switching inputs: 1 pieces; switching outputs: 1 pieces; selectable in/outputs: 2 pieces; interface: Ethernet, RS 232, RS 422; connection: Round plug, M12; Dimensions: 43 mm x 61 mm x 44 mm; Optical cover: plastic; Ambient temperature Operation: 0 ... 50 °C; protection class IP 65
