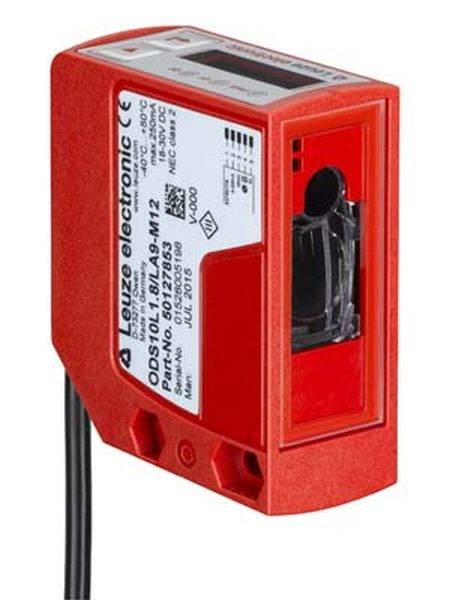

Leuze Electronic 50129532 Optical proximity sensor 1 pc(s) Max. range (open field): 8.000 mm (L x W x H) 55 x 25 x 65 mm
EAN:
Part number:
Item no:
Product type
Optical proximity sensor
Max. range
8.000 mm
Type
50129532
Content
1 pc(s)
Contact type
Antivalent
Technical specifications
- Product type
Optical proximity sensor
- Type
50129532
- Content
1 pc(s)
- Contact type
Antivalent
- Transmitter type
Laser diode
- Laser category
1
- Outputs
Analogue
- Resolution
1.0 mm
- Range (min.) (open area)
50 mm
8.000 mm
- Connector
Cable
- Cable length
2.000 mm
- Min. temperature
-40 °C
- Max. temperature
50 °C
- Length
55 mm
- Width
25 mm
- Height
65 mm
- Dim
(L x W x H) 55 x 25 x 65 mm
- Manufacturer part #
50129532
- Jacket material
Polyurethane
- No. of pins
5
DC
Plastic
-40-50 °C
FALSE
Push button
0 mA ... 20 mA / 4 mA ... 20 mA
Cable
PNP/NPN
Anticoincidence
Safety class 3
Manual adjustment
None
None
Cuboid
Class 1
Laser diode, red light
Other
18-30 V
FALSE
Glass
Polyurethane (PUR)
IP67
25 mm
65 mm
55 mm
Light-/dark switching
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983057 Leuze Electronic 50129532 Optical proximity sensor 1 pc(s) Max. range (open field): 8.000 mm (L x W x H) 55 x 25 x 65 mm
Description
Touch system: Against object; light source: Laser, red; light spot size: 7 mm x 7 mm; measuring range: 50 ... 8,000 mm; Geometric resolution: 1.0 mm; Supply voltage: 18 ... 30 V, DC; Analog outputs: 1 pcs.; Digital switching outputs: 2 pcs.; Output: Configurable, factory setting: Power; interface: IO-Link; connection: Cable, 2,000 mm, 5 -wire; Dimensions: 25 mm x 65 mm x 55 mm; control elements: control keys, PC software
