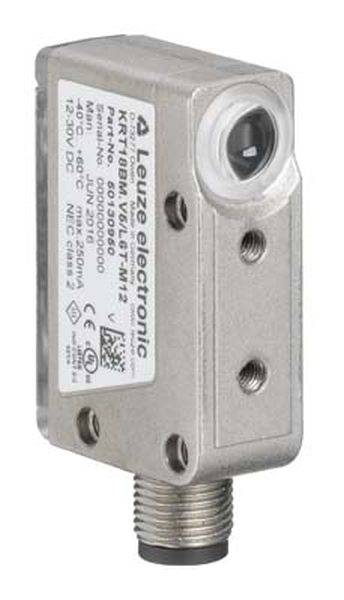

Leuze Electronic 50131244 50131244 Contrast sensor 1 pc(s) Antivalent (L x W x H) 32.5 x 15 x 47 mm
EAN:
Part number:
Item no:
Product type
Contrast sensor
Type
50131244
Content
1 pc(s)
Contact type
Antivalent
Min. temperature
-40 °C
Technical specifications
- Product type
Contrast sensor
- Type
50131244
- Content
1 pc(s)
- Contact type
Antivalent
- Min. temperature
-40 °C
- Max. temperature
60 °C
- Length
32.5 mm
- Width
15 mm
- Height
47 mm
- Dim
(L x W x H) 32.5 x 15 x 47 mm
DC
100 mA
Other
-40-60 °C
FALSE
22000 Hz
2
Connector M12
PNP/NPN
Anticoincidence
FALSE
12-30 V
Safety class 3
Cuboid
Other
Multi-coloured LED
FALSE
FALSE
16 mm
Other
IP67
15 mm
47 mm
32.5 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981378 Leuze Electronic 50131244 50131244 Contrast sensor 1 pc(s) Antivalent (L x W x H) 32.5 x 15 x 47 mm
Description
Special version: Teach-in; operating range: 0.01 ... 0.016 m; light source: LED, RGB; supply voltage: 12 ... 30 V, DC; Digital switching outputs: 2 pieces; switching output 1: Transistor, push-pull, IO-Link / light-switching (NPN) / dark switching (PNP); switching output 2: Transistor, push-pull, light-switching (PNP) / dark switching (NPN); switching frequency: 22,000 Hz; Interface: IO-Link; Connection: circular connector, M12, 5-pin; Dimensions: 15 mm x 47 mm x 32.5 mm; Material housing: metal; controls: key(s)
