Buy Leuze Electronic 50134393 50134393 Optical data transmission Ethernet 1 pc(s)

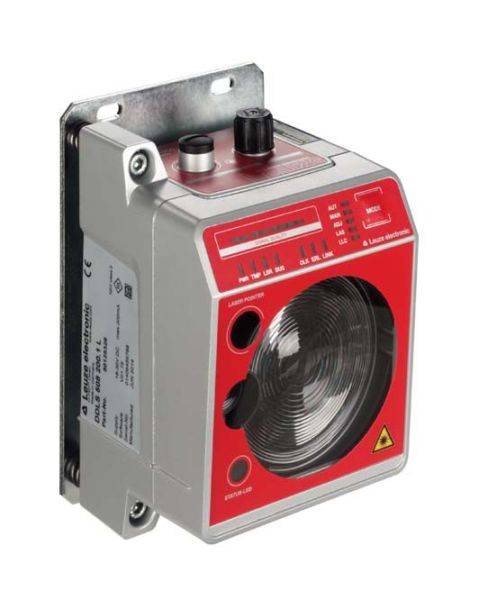

Metallic device with a red casing, large circular lens attachment, and control buttons on top. Instruction label present. Device for sensing or sensor technology.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product type: Optical data transmission

Interfaces: Ethernet

Type: 50134393

Min. operating temperature: -5 °C

Operating temperature: -5 °C (min)

Manufacturer part #: 50134393

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3020364 Leuze Electronic 50134393 50134393 Optical data transmission Ethernet 1 pc(s)

Description

Pre-assembled on: Mounting plate; special design: Operation of parallel light axes, remote maintenance via web server, no influence through reflective surfaces; working area: 100 ... 120,000 mm; transmission frequency: F3; usable opening angle Transmitter: 1 °; supply voltage: 18 ... 30 V, DC; interface: Ethernet; transmission rate: 100 Mbit/s; Connection: circular connector, M12; dimensions: 100 mm x 156 mm x 99.5 mm; ambient temperature operation: -5 ... 50 °C; protection class IP 65

This text is machine translated.
