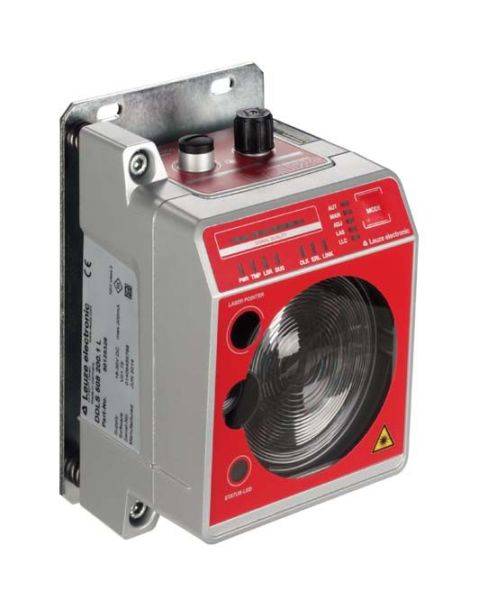

Leuze Electronic 50134417 50134417 Optical data transmission Profinet 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Optical data transmission
- Interfaces
Profinet
- Type
50134417
- Min. operating temperature
-5 °C
- Operating temperature
-5 °C (min)
- Manufacturer part #
50134417
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3020362 Leuze Electronic 50134417 50134417 Optical data transmission Profinet 1 pc(s)
Description
Pre-assembled on: Mounting plate; special design: Operation of parallel light axes, remote maintenance via web server, no influence through reflective surfaces; working area: 100 ... 120,000 mm; transmission frequency: F3; usable opening angle Transmitter: 1 °; supply voltage: 18 ... 30 V, DC; interface: PROFINET, Profinet, transmission speed 100 Mbit/s; Connection: circular connector, M12; dimensions: 100 mm x 156 mm x 99.5 mm; ambient temperature operation: -5 ... 50 °C; protection class IP 65
