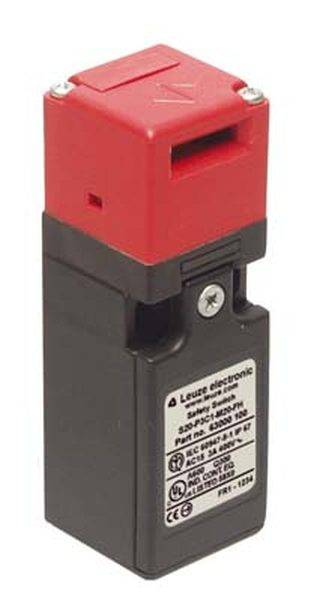

Leuze Electronic 63000100 63000100 Safety button side Mechanical lock 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Safety button
- Connection
Clamp
- Operation type
side
- Contact type
2 breakers
- Functions
Mechanical lock
- Actuating force
10 N
- Thread size
M20 x 1.5
- Width
30.8 mm
- Type
63000100
- Content
1 pc(s)
- Dim
(W x H x D) 30.8 x 30.8 x 93 mm
- Height
30.8 mm
- Depth
93 mm
Plastic
TRUE
Other
FALSE
Slow-action switch
None
Other
None
None
Cuboid
IP67
TRUE
None
30.8 mm
30.8 mm
93 mm
-25-80 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2984049 Leuze Electronic 63000100 63000100 Safety button side Mechanical lock 1 pc(s)
Description
Contact configuration: 2NC, creeping contact; cable entry: 1 pc., M20 x 1.5; connection: Terminal, 4 -pole; Dimension: 30.8 mm x 30.8 mm x 93 mm; Material housing: plastic, glass-fiber reinforced (PPS), self-extinguishing; Switch type: interlocking device without locking, ISO 14119; start-up operating directions: 10 x lateral (90°), 1 x above; actuating force (pull out): 4 N; protection class: IP 67; Approvals: IMQ, c UL US
