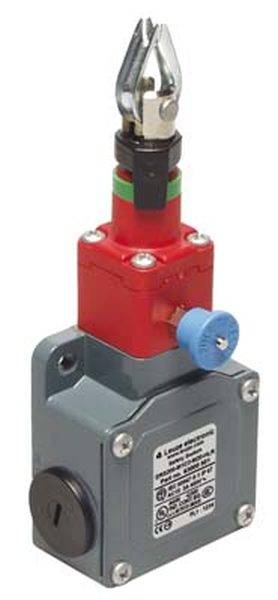

Leuze Electronic 63000500 Corded kill switch for emergency power-off 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Corded kill switch
- Switch/button features
for emergency power-off
- Unlocking mechanism
Pull
- Print motif
EMERGENCY STOP
- Actuating force
83 N
- Connection
Clamp
- Length
56 mm
- Width
47.8 mm
- Height
129 mm
- Type
63000500
- Content
1 pc(s)
- Dim
(L x W x H) 56 x 47.8 x 129 mm
-25-80 °C
IP67
24 m
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982964 Leuze Electronic 63000500 Corded kill switch for emergency power-off 1 pc(s)
Description
Contact configuration: 1NC + 1NO; line insertion: 3 pieces, M20 x 1.5; connection: Terminal, 4-pin Dimensions: 56 mm x 47.8 mm x 129 mm; material housing: metal, ZAMAK; installation position: in cable axis; switch type: EMERGENCY-STOP command device, EN ISO 13850; Actuator, external: cable pull; cable length, max. (at 20 °C temperature difference): 24 m; operating force (pull out): 83 N; operating directions: in longitudinal axis; actuation path for forced separation: 8 mm; protection class: IP 67; approvals: IMQ, c UL US
