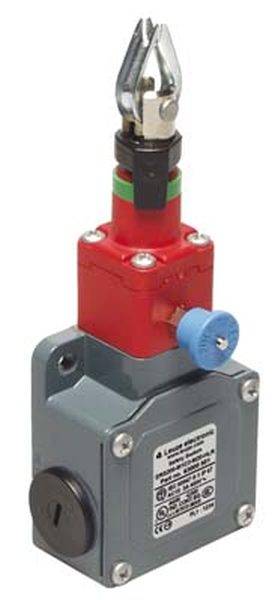

Leuze Electronic 63000502 Corded kill switch + kill switch 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Corded kill switch
- Switch/button features
+ kill switch
- Print motif
EMERGENCY STOP
- Actuating force
83 N
- Connection
Clamp
- Type
63000502
- Content
1 pc(s)
-25-80 °C
IP67
24 m
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982962 Leuze Electronic 63000502 Corded kill switch + kill switch 1 pc(s)
Description
Contact configuration: 2NC + 1NO; cable entry: 3 pcs., M20 x 1.5; connection: Terminal, 6-pin; Dimensions: 56 mm x 47.8 mm x 129 mm; material housing: metal, ZAMAK; installation position: in cable axis; switch type: EMERGENCY-STOP command device, EN ISO 13850; Actuator, external: cable pull; cable length, max. (at 20 °C temperature difference): 24 m; operating force (pull out): 83 N; operating directions: in longitudinal axis; actuation path for forced separation: 8 mm; protection class: IP 67; approvals: IMQ, c UL US
