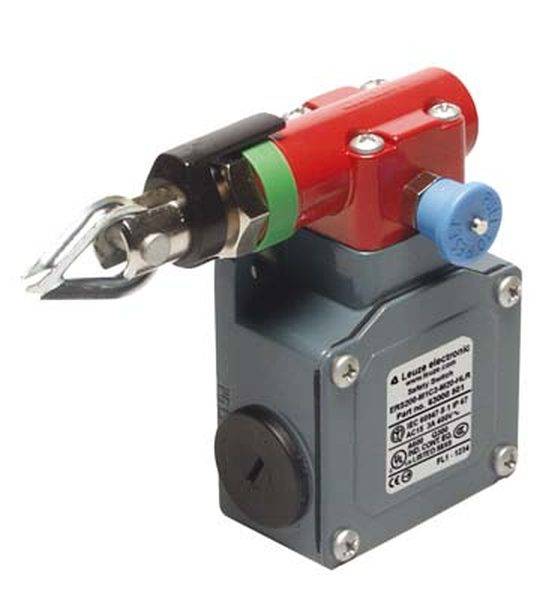

Leuze Electronic 63000521 Corded kill switch for emergency power-off 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Corded kill switch
- Switch/button features
for emergency power-off
- Print motif
EMERGENCY STOP
- Actuating force
235 N
- Connection
Clamp
- Type
63000521
- Content
1 pc(s)
-25-80 °C
IP67
70 m
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982958 Leuze Electronic 63000521 Corded kill switch for emergency power-off 1 pc(s)
Description
Contact configuration: 2NC + 1NO; cable entry: 3 pcs., M20 x 1.5; connection: Terminal, 6-pin; Dimensions: 92 mm x 47.8 mm x 89 mm; material housing: metal, ZAMAK; installation position: in cable spindle, left outgoing; Switch type: EMERGENCY-STOP control device, EN ISO 13850; actuator, external: cable; cable length, max. (at 20 °C temperature difference): 70 m; operating force (pull out): 235 N; operating directions: left; actuation path for forced separation: 14 mm; protection class: IP 67; approvals: IMQ, c UL US
