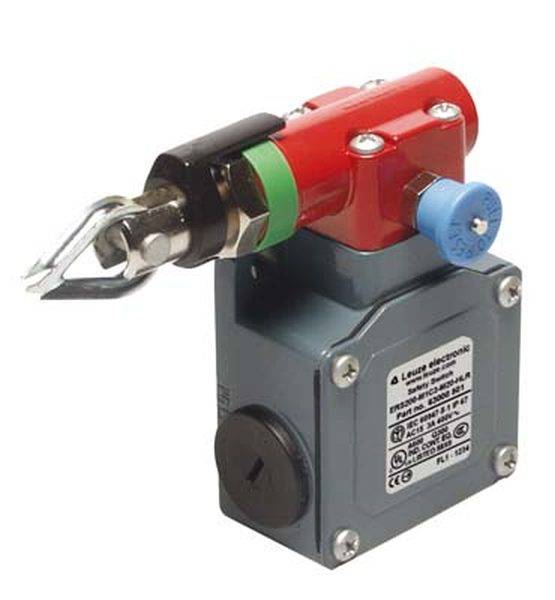

Leuze Electronic 63000525 Corded kill switch + contact 2 breakers 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Corded kill switch
- Switch/button features
+ contact
- Print motif
EMERGENCY STOP
- Contact type
2 breakers
- Actuating force
235 N
- Connection
Clamp
- Functions
latch
- Length
84 mm
- Width
49.5 mm
- Height
98.5 mm
- Type
63000525
- Content
1 pc(s)
- Dim
(L x W x H) 84 x 49.5 x 98.5 mm
-25-80 °C
IP67
70 m
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982954 Leuze Electronic 63000525 Corded kill switch + contact 2 breakers 1 pc(s)
Description
Contact configuration: 2NC; Cable entry: 1 pc., M20 x 1.5; Connection: Clamp, 4 -pin; Dimensions: 84 mm x 49.5 mm x 98.5 mm; material housing: metal, ZAMAK; installation position: in cable spindle, left outgoing; Switch type: EMERGENCY-STOP control device, EN ISO 13850; actuator, external: cable; cable length, max. (at 20 °C temperature difference): 70 m; operating force (pull out): 235 N; operating directions: left; actuation path for forced separation: 14 mm; protection class: IP 67; approvals: IMQ, c UL US
