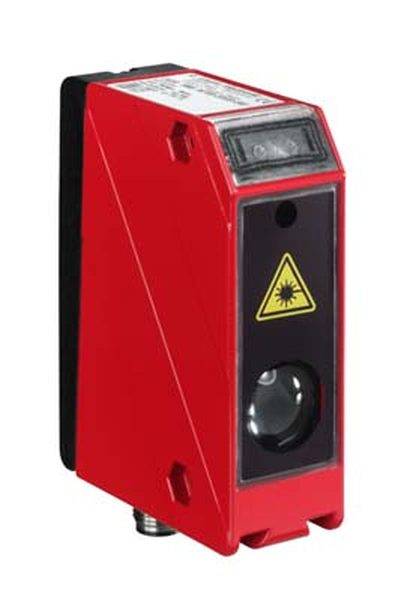

Leuze Electronic Leuze Optical proximity sensor 1 pc(s) Max. range (open field): 800 mm
EAN:
Part number:
Item no:
Product type
Optical proximity sensor
Max. range
800 mm
Type
Leuze
Content
1 pc(s)
Transmitter type
Laser diode
Technical specifications
- Product type
Optical proximity sensor
- Type
Leuze
- Content
1 pc(s)
- Transmitter type
Laser diode
- Beam diameter
1 mm
- Range (min.) (open area)
150 mm
800 mm
- Tolerance ±
1.5 %
- Thread type connection side
M12
- Manufacturer part #
50106728
- No. of pins
5
DC
Other
-20-50 °C
FALSE
Push button
0 mA ... 20 mA / 4 mA ... 20 mA
Connector M12
PNP/NPN
Anticoincidence
Safety class 2
Manual adjustment
None
None
Cuboid
Class 2
Laser diode, red light
1.5 %
Triangulation
0.5 %
18-30 V
FALSE
Glass
Other
IP67
30 mm
90 mm
70 mm
Light-/dark switching
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2983123 Leuze Electronic Leuze Optical proximity sensor 1 pc(s) Max. range (open field): 800 mm
Description
Probe system: Against object; special version: Small light spot (S); light source: Laser, red; light spot size: 1 mm; measuring range: 150 ... 800 mm; Geometric resolution: 0.1 ... 0.8 mm; accuracy: 1.5 %; supply voltage: 18 ... 30 V, DC; Digital switching inputs: 1 pieces; Analogue outputs: 1 pieces; Digital switching outputs: 1 pieces; Output: Current; connection: Round plug, M12, 5-pin; Dimensions: 30 mm x 90 mm x 70 mm; control elements: film keyboard, PC software
