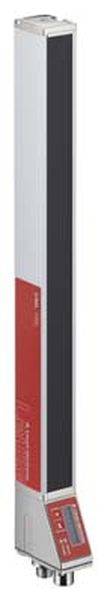

Leuze Electronic Light barrier 50118773 Range (max.) 4.5 m Protective field height 2.960 mm
EAN:
Part number:
Item no:
Product type
Light barrier
Type
50118773
Response time
10 µs
Range (min.)
0.1 m
Range (max.)
4.5 m
Technical specifications
- Product type
Light barrier
- Type
50118773
- Response time
10 µs
- Range (min.)
0.1 m
- Range (max.)
4.5 m
- Outputs
IO link
- Beam spacing
5 mm
- Protective field height
2.960 mm
- Total height
3.035 mm
- Content
1 pc(s)
- Width
29 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
10 mm
None
None
Receiver
FALSE
FALSE
FALSE
FALSE
0.01 ms
FALSE
4.5 m
2960 mm
TRUE
IP65
5 mm
29 mm
35.4 mm
3035 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982105 Leuze Electronic Light barrier 50118773 Range (max.) 4.5 m Protective field height 2.960 mm
Description
Special version: Cross beam scanning, diagonal beam scanning, parallel beam scanning; operating range: 0.1 ... 4.5 m; measuring field length: 2,960 mm; beam distance: 5 mm; supply voltage: 18 ... 30 V, DC; cycle time: 6.07 ms; response time per beam: 10 µs; interface: IO-Link; connection: Round plug, M12, Axial, 8 pole; dimensions: 29 mm x 35.4 mm x 3,035 mm
