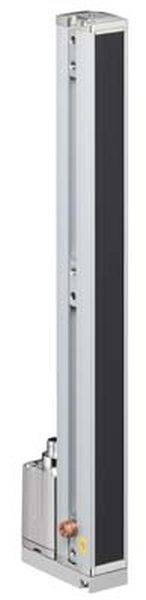

Leuze Electronic Light barrier 50118939 Range (max.) 4 m Protective field height 2.240 mm
EAN:
Part number:
Item no:
Product type
Light barrier
Length
29 mm
Height
2.263 mm
Type
50118939
Range of uses
PPE
Technical specifications
- Product type
Light barrier
- Type
50118939
- Range of uses
PPE
- Response time
4.68 ms
- Range (min.)
0.1 m
- Range (max.)
4 m
- Beam spacing
5 mm
- Protective field height
2.240 mm
- Total height
2.263 mm
- Content
1 pc(s)
- Length
29 mm
- Width
35.4 mm
- Height
2.263 mm
- Dim
(L x W x H) 29 x 35.4 x 2.263 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
10 mm
None
None
Transmitter
FALSE
FALSE
FALSE
FALSE
FALSE
4 m
2240 mm
TRUE
940 nm
IP65
5 mm
29 mm
35.4 mm
2263 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982078 Leuze Electronic Light barrier 50118939 Range (max.) 4 m Protective field height 2.240 mm
Description
Special version: Diagonal beam scanning, cross beam scanning, parallel beam scanning; operating range: 0.1 ... 4 m; measuring field length: 2,240 mm; beam distance: 5 mm; supply voltage: 18 ... 30 V, DC; cycle time: 4.68 ms; connection: Round plug, M12, rear, 5 -pin; dimensions: 29 mm x 35.4 mm x 2,263 mm
