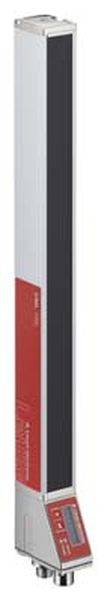

Leuze Electronic Light barrier 50123021 Range (max.) 7 m Protective field height 2.550 mm
EAN:
Part number:
Item no:
Product type
Light barrier
Type
50123021
Response time
30 µs
Range (min.)
0.3 m
Range (max.)
7 m
Technical specifications
- Product type
Light barrier
- Type
50123021
- Response time
30 µs
- Range (min.)
0.3 m
- Range (max.)
7 m
- Beam spacing
20 mm
- Protective field height
2.550 mm
- Total height
2.635 mm
- Content
1 pc(s)
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Other
Connector M12
18-30 V
Safety class 3
30 mm
None
None
Receiver
FALSE
FALSE
FALSE
FALSE
0.03 ms
FALSE
7 m
2550 mm
TRUE
IP65
20 mm
29 mm
35.4 mm
2635 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982112 Leuze Electronic Light barrier 50123021 Range (max.) 7 m Protective field height 2.550 mm
Description
Operating range: 0.3 ... 7 m; measuring field length: 2,550 mm; beam distance: 20 mm; cycle time: 4.24 ms; response time per beam: 30 µs; supply voltage: 18 ... 30 V, DC; interface: PROFIBUS DP; connection: Round plug, M12, Axial, 8-pin; dimensions: 29 mm x 35.4 mm x 2,635 mm; special design: diagonal beam scanning, parallel beam scanning, cross beam scanning
