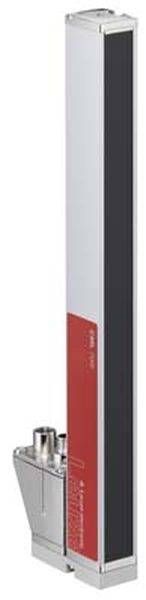

Leuze Electronic Light barrier 50123111 Range (max.) 4.5 m Protective field height 240 mm
EAN:
Part number:
Item no:
Product type
Light barrier
Length
263 mm
Height
29 mm
Type
50123111
Response time
10 µs
Technical specifications
- Product type
Light barrier
- Type
50123111
- Response time
10 µs
- Range (min.)
0.1 m
- Range (max.)
4.5 m
- Beam spacing
5 mm
- Protective field height
240 mm
- Content
1 pc(s)
- Length
263 mm
- Width
35.4 mm
- Height
29 mm
- Dim
(L x W x H) 263 x 35.4 x 29 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Other
Connector M12
18-30 V
Safety class 3
10 mm
None
None
Receiver
FALSE
FALSE
FALSE
FALSE
0.01 ms
FALSE
4.5 m
240 mm
TRUE
IP65
5 mm
29 mm
35.4 mm
263 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982063 Leuze Electronic Light barrier 50123111 Range (max.) 4.5 m Protective field height 240 mm
Description
Operating range: 0.1 ... 4.5 m; measuring field length: 240 mm; beam distance: 5 mm; cycle time: 1 ms; response time per beam: 10 µs; supply voltage: 18 ... 30 V, DC; interface: PROFIBUS DP; connection: Round plug, M12, rear, 8 -pin; dimensions: 29 mm x 35.4 mm x 263 mm; special design: diagonal beam scanning, parallel beam scanning, cross beam scanning
