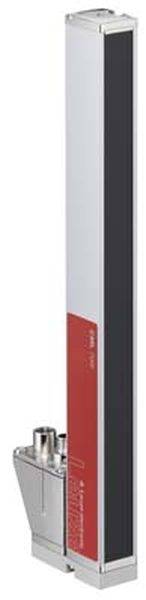

Leuze Electronic Light barrier 50123231 Range (max.) 9.5 m Protective field height 930 mm
EAN:
Part number:
Item no:
Product type
Light barrier
Length
983 mm
Type
50123231
Range of uses
PPE
Response time
10 µs
Technical specifications
- Product type
Light barrier
- Type
50123231
- Range of uses
PPE
- Response time
10 µs
- Range (min.)
0.3 m
- Range (max.)
9.5 m
- Beam spacing
40 mm
- Protective field height
930 mm
- Content
1 pc(s)
- Length
983 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Other
Connector M12
18-30 V
Safety class 3
50 mm
None
None
Receiver
FALSE
FALSE
FALSE
FALSE
0.01 ms
FALSE
9.5 m
930 mm
TRUE
IP65
40 mm
29 mm
35.4 mm
983 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982058 Leuze Electronic Light barrier 50123231 Range (max.) 9.5 m Protective field height 930 mm
Description
Operating range: 0.3 ... 9.5 m; measuring field length: 930 mm; beam distance: 40 mm; cycle time: 1 ms; response time per beam: 10 µs; supply voltage: 18 ... 30 V, DC; interface: PROFIBUS DP; connection: Round plug, M12, rear, 8 -pin; dimensions: 29 mm x 35.4 mm x 983 mm; special design: diagonal beam scanning, parallel beam scanning, cross beam scanning
