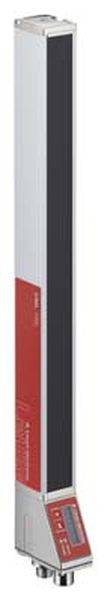

Leuze Electronic Light barrier 50123481 Range (max.) 7 m Protective field height 640 mm
EAN:
Part number:
Item no:
Product type
Light barrier
Length
35.4 mm
Height
715 mm
Type
50123481
Response time
30 µs
Technical specifications
- Product type
Light barrier
- Type
50123481
- Response time
30 µs
- Range (min.)
0.3 m
- Range (max.)
7 m
- Beam spacing
10 mm
- Protective field height
640 mm
- Total height
715 mm
- Content
1 pc(s)
- Length
35.4 mm
- Width
29 mm
- Height
715 mm
- Dim
(L x W x H) 35.4 x 29 x 715 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
20 mm
None
None
Receiver
FALSE
FALSE
FALSE
FALSE
0.03 ms
FALSE
7 m
640 mm
TRUE
IP65
10 mm
29 mm
35.4 mm
715 mm
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2982050 Leuze Electronic Light barrier 50123481 Range (max.) 7 m Protective field height 640 mm
Description
Special version: Diagonal beam scanning, cross beam scanning, parallel beam scanning; operating range: 0.3 ... 7 m; measuring field length: 640 mm; beam distance: 10 mm; supply voltage: 18 ... 30 V, DC; cycle time: 2.32 ms; response time per beam: 30 µs; port: RS 485 Modbus; connection: Round plug, M12, Axial, 8 -pin; Dimensions 29 x 35.4 x 715 mm
