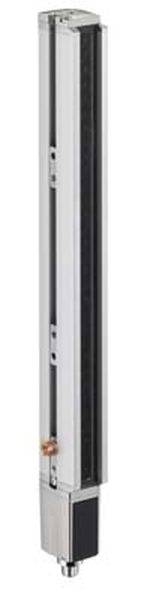

Leuze Electronic Light barrier 50126410 Range (max.) 6 m Protective field height 1.410 mm
EAN:
Part number:
Item no:
Product type
Light barrier
Length
1.410 mm
Height
1.463 mm
Type
50126410
Response time
2.56 ms
Technical specifications
- Product type
Light barrier
- Type
50126410
- Response time
2.56 ms
- Range (min.)
0.3 m
- Range (max.)
6 m
- Beam spacing
20 mm
- Protective field height
1.410 mm
- Total height
1.463 mm
- Content
1 pc(s)
- Length
1.410 mm
- Width
40.3 mm
- Height
1.463 mm
- Dim
(L x W x H) 1.410 x 40.3 x 1.463 mm
DC
FALSE
FALSE
-30-60 °C
FALSE
Other
Connector M12
18-30 V
Safety class 3
30 mm
ATEX gas-ex-protection, Cat. 2G
ATEX dust-ex-protection, Cat. 2D
Transmitter
FALSE
FALSE
FALSE
FALSE
FALSE
7 m
1410 mm
TRUE
940 nm
IP65
20 mm
30.7 mm
40.3 mm
1463 mm
Other
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2981994 Leuze Electronic Light barrier 50126410 Range (max.) 6 m Protective field height 1.410 mm
Description
Operating range: 0.3 ... 6 m; measuring field length: 1,410 mm; beam distance: 20 mm; cycle time: 2.56 ms; supply voltage: 18 ... 30 V, DC; connection: Round plug, M12, Axial, 5 pole; dimensions: 30.7 mm x 40.3 mm x 1,463 mm; Ex zone: 2, 22; Ex equipment group: II; special design: cross beam scanning, Parallel beam scanning, diagonal beam scanning, Ex-protected
